Description

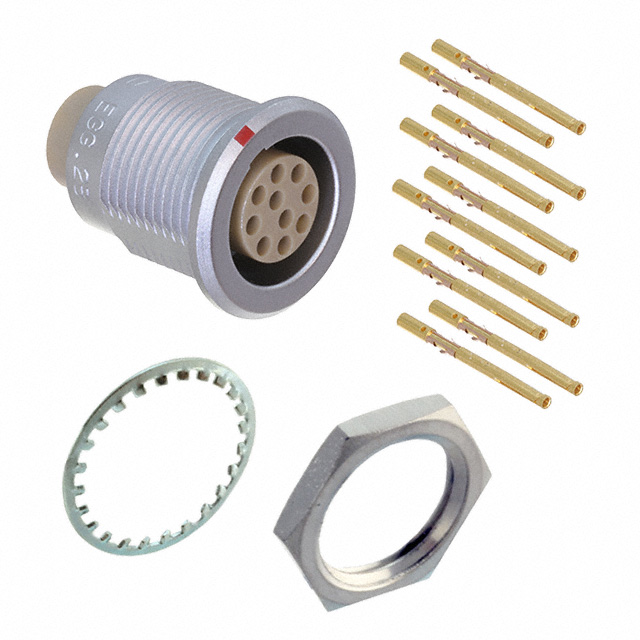

EGG.2B.310.CYM Lemo Push-Pull Metal Connector Receptacle, Female Sockets 10 Position 8A IP50 – Dust Protected Panel Mount Shielded Bulkhead Rear Side Nut UL94 V-0 Crimp
Color: Silver
Shielding: Shielded
Type: Circular Connector Assemblies
Primary Material: Metal
Shell Material: Metal
Shell Finish Material: Brass
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Receptacle, Female Sockets
Number of Positions: 10
Shell Size – Insert: 10
Orientation: G
Current Rating: 8A (Amps)
Termination: Crimp
Mounting Feature: Bulkhead Rear Side Nut
Mounting Type: Panel Mount
Fastening Type: Push-Pull
Manufacturer Part Number: EGG.2B.310.CYM
Manufacturer: Lemo
Datasheet: Datasheet
