Description

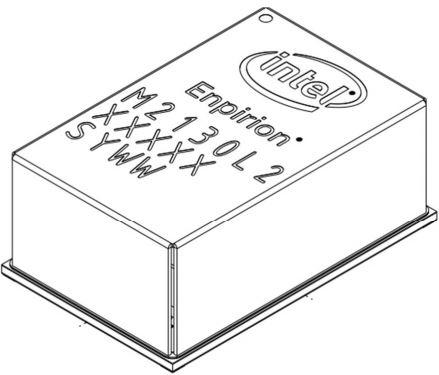

EM2130L02QI Intel / Altera Switching Voltage Regulator Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.7 ~ 1.325V – – – 30A 4.5V – 16V Input QFN-100 RoHS
Specifications
Manufacturer: Intel
Product Category: Switching Voltage Regulators
Mounting Style: SMD/SMT
Package / Case: QFN-100
Topology: Buck
Output Voltage: 700 mV to 1.325 V
Output Current: 30 A
Number of Outputs: 1 Output
Input Voltage MAX: 16 V
Input Voltage MIN: 4.5 V
Quiescent Current: 40 mA
Switching Frequency: 800 kHz
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Series: EM2130
Packaging: Tray
Input Voltage: 4.5 V to 16 V
Type: Synchronous Buck Converter
Brand: Intel / Altera
Shutdown: Shutdown
Development Kit: EVB-EM2130L02
Moisture Sensitive: Yes
Operating Supply Current: 120 mA
Product Type: Switching Voltage Regulators
Factory Pack Quantity: 112
Subcategory: PMIC – Power Management ICs
Supply Voltage – Min: 4.75 V
Tradename: Enpirion
Part # Aliases: 972582
Unit Weight: 1.005583 oz
Manufacturer: Altera
MFG Part #: EM2130L02QI
