Description

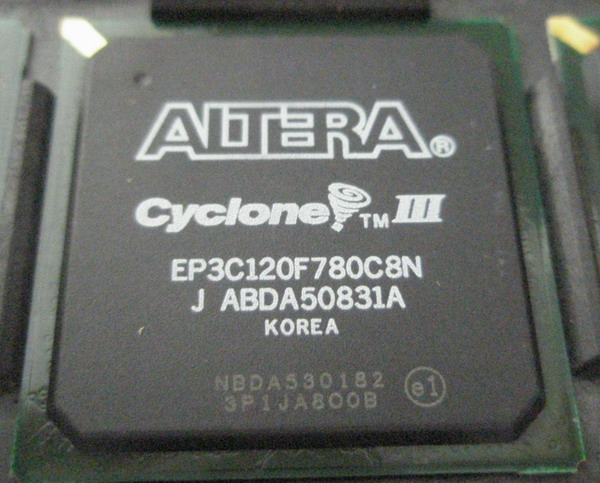

EP3C120F780C8N Altera Corporation FPGA Cyclone III Family 119088 Cells 402MHz 65nm Technology 1.2V 780-Pin FBGA RoHS
Family Name Cyclone III
^Number of Logic Blocks/Elements 119088
^# I/Os (Max) 531
^Frequency 402MHz
^Process Technology 65nm
^Operating Supply Voltage (Typ) 1.2V
^Logic Cells 119088
^RAM Bits 3981312
^Operating Supply Voltage (Min) 1.15V
^Operating Supply Voltage (Max) 1.25V
^Operating Temp Range 0C to 85C
^Operating Temperature Classification Commercial
^Mounting Surface Mount
^Pin Count 780
^Package Type FBGA
Manufacturer Part Number: EP3C120F780C8N
Manufacturer: Electronic Components
