Description

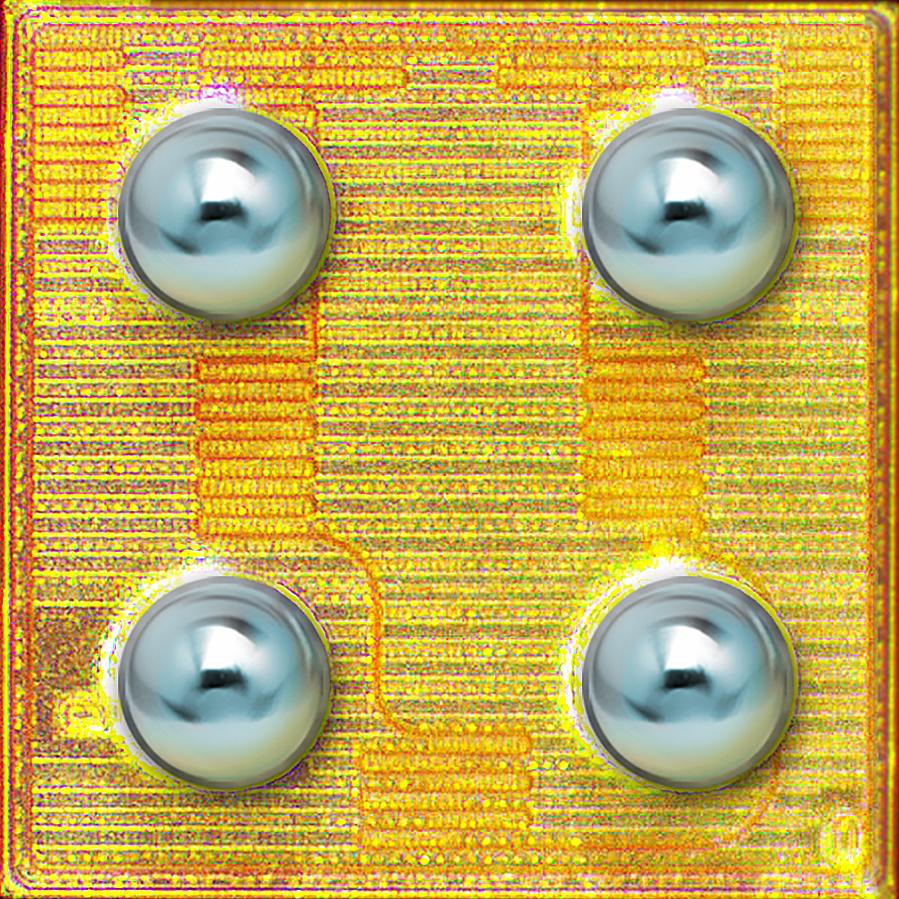

EPC2037 EPC Power Transistor N-Channel 100 V 1.7A Surface Mount 4 Die RoHS
The EPC2037 from Efficient Power Conversion is a GaN Power Transistor with Gate Threshold Voltage 0.8 to 2.5 V, Drain Source Voltage 100 V, Drain Source Resistance 400 to 550 milli-ohm, Continous Drain Current 1.7 A, Pulsed Drain Current 2.4 A. Tags: Die. More details for EPC2037 can be seen below.
Part Number: EPC2037
Manufacturer: Efficient Power Conversion
Description: 100 V Enhancement-Mode GaN Power Transistor
General
Configuration: Single
Gate Threshold Voltage: 0.8 to 2.5 V
Drain Source Voltage: 100 V
Drain Source Resistance: 400 to 550 milli-ohm
Continous Drain Current: 1.7 A
Pulsed Drain Current: 2.4 A
Total Charge: 115 to 145 nC
Input Capacitance: 14 to 17 pF
Output Capacitance: 6.5 to 10 pF
Temperature operating range: -40 to +150C
RoHS Compliant: Yes
Package Type: Die
Package: BGA
Applications: High Speed DC-DC conversion, Wireless Power Transfer, Lidar/Pulsed Power, Class-D Audio Applications
Dimensions: 0.9 x 0.9 mm
Manufacturer: Electronic Components
MFG Part #: EPC2037
