Description

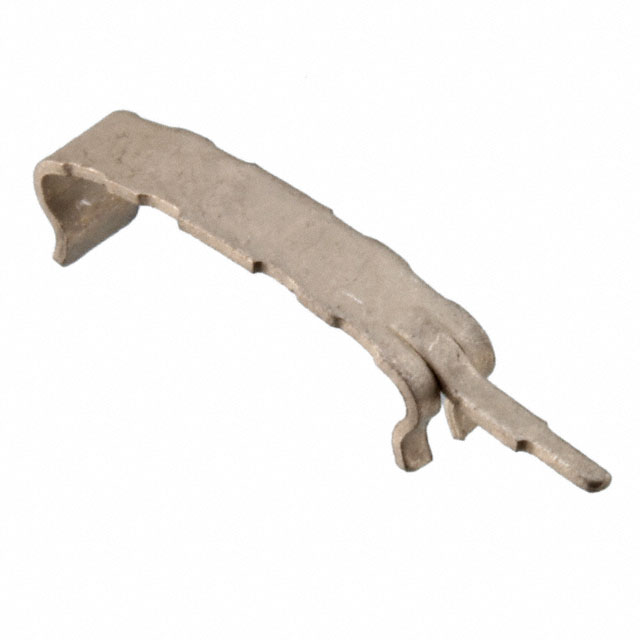

EPCOS / TDK B65806A2203 Ferrite Core Clip
TDK was founded in 1935, to commercialize the magnetic material “ferrite.” For more than 70 years since then, TDK has enriched the materials technology down the stream of ferrite, the process technology to extract the most out of such materials, and the evaluation and simulation technology. Through these, TDK has developed and provided a variety of products of value and originality to the society.
EPCOS Ferrites and Accessories
Product
E/ELP Cores and Accessories
EFD/EV Cores and Accessories
ER/ETD/EQ Cores and Accessories
PM/P/P Cores Halves/EP Cores and Accessories
PQ Cores and Accessories
Ring/Double-Aperture Cores
RM Cores and Accessories
U/I Cores
Blocks, Plates, Disks
Ferrite Materials
TDK offers a wide variety of Mn-Zn ferrite materials optimized for their application purposes, and include materials with high magnetic flux, low losses, and for broad temperature ranges. The products are also available in various profiles, including materials with standard core shapes that are compliant with international standards or low-profile materials for planar transformers. In addition, the portfolio features Ni-Zn ferrite materials that are optimized for use in inductors, EMC products, antennas, and various other products. These high-frequency materials offer high magnetic flux, high stress-resistance, and low temperature coefficients. TDK excels in the high-precision manufacturing of advanced core geometries, including small and low-profile shapes with a height of 0.6 mm or lower, and offers a comprehensive program of matching accessories.
Manufacturer:Epcos / TDK
Datasheet:B65806A2203.pdf
