Description

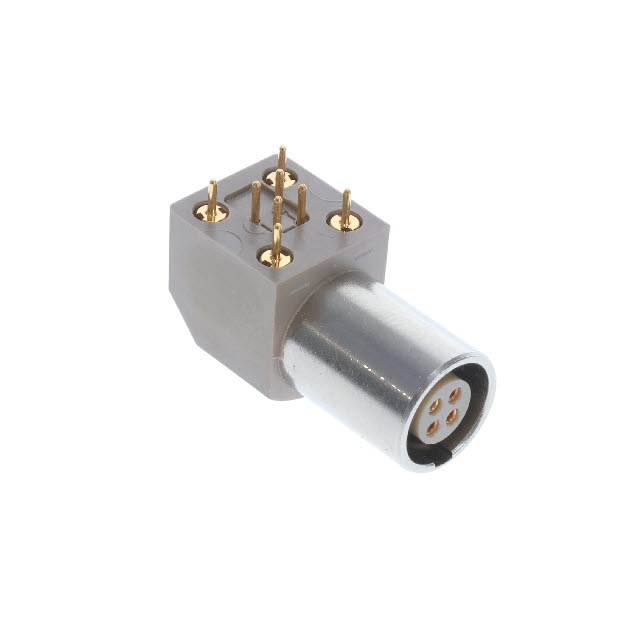

EPG.1B.304.HLN Lemo Push-Pull Metal Connector Receptacle, Female Sockets 4 Position 4.5A IP50 – Dust Protected Through Hole, Right Angle Shielded UL94 V-0 Ground Solder
Color: Brown, Silver
Shielding: Shielded
Type: Circular Connector Assemblies
Primary Material: Metal
Shell Material: Metal
Shell Finish Material: Brass and Polyphenylene Sulfide (PPS)
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Receptacle, Female Sockets
Number of Positions: 4
Shell Size – Insert: 4
Orientation: G
Current Rating: 4.5A (Amps)
Termination: Solder
Mounting Feature:
Mounting Type: Through Hole, Right Angle
Fastening Type: Push-Pull
Manufacturer Part Number: EPG.1B.304.HLN
Manufacturer: Lemo
Datasheet: Datasheet
