Description

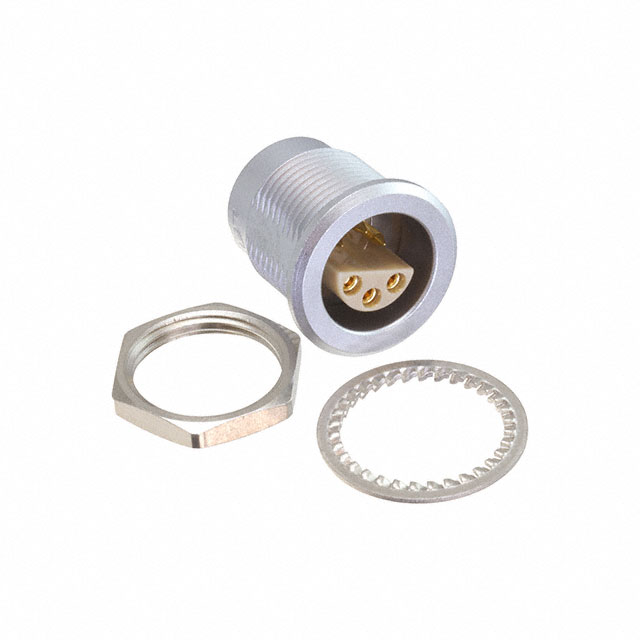

ERA.2S.306.CLL Lemo Push-Pull Metal Connector Receptacle, Female Sockets and Male Pins 6 Position 12A IP50 – Dust Protected Panel Mount Shielded Bulkhead Rear Side Nut UL94 V-0 Solder Cup
Color: Silver
Shielding: Shielded
Type: Circular Connector Assemblies
Primary Material: Metal
Shell Material: Metal
Shell Finish Material: Brass
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Receptacle, Female Sockets and Male Pins
Number of Positions: 6
Shell Size – Insert: 6
Orientation: Keyed
Current Rating: 12A (Amps)
Termination: Solder Cup
Mounting Feature: Bulkhead Rear Side Nut
Mounting Type: Panel Mount
Fastening Type: Push-Pull
Manufacturer Part Number: ERA.2S.306.CLL
Manufacturer: Lemo
Datasheet: Datasheet
