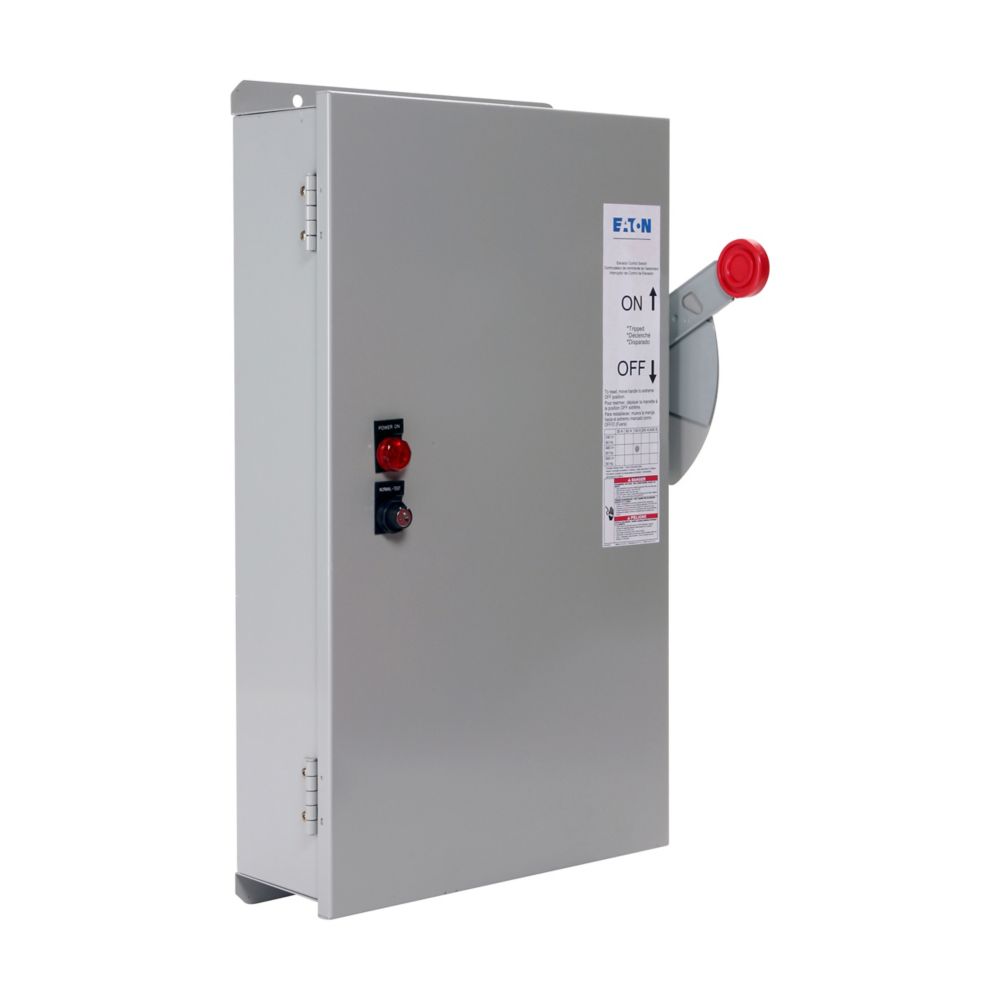

ES4T2R2GF1NB Eaton Low Voltage Main Elevator Control Switch, 208 VAC, 200 A, 30 hp, 40 hp, 1NC-1NO Contact, 1 Poles
ES4T2R2GF1NB Eaton elevator control switch, 24 Vdc coil fire safety interface relay, single-pole fire alarm voltage monitoring relay, green pilot light, isolated full capacity neutral lug, 200 A, NEMA 1, #6-250 kcmil Al or Cu, 208 V, 1NO/NC Main switch. The elevator control switch provides an all-in-one product solution and selective coordination for elevator circuits. The elevator control switch uses a shunt trip disconnect as standard with Class J time delay current limiting fuses for meeting several code and user requirements for such circuits. Ratings are 30 to 200 A, 600 VAC, NEMA 1, 3R, 12 and 4 enclosures. The elevator control switch carries a 200 kA rms symmetrical short circuit rating.
Eaton ES4T2R2GF1NB – 24 Vdc coil fire safety interface relay, single-pole fire alarm voltage monitoring relay, green pilot light, isolated full capacity neutral lug, 200 A, NEMA 1, #6-250 kcmil Al or Cu, 208 V, 1NO/NC Main switch – Class J Fuses not included, Standard overside enclosure to mount control power transformer fire safety interface relay and control terminal blocks, Optional neutral lug size same as line and load. – 24 Vdc coil fire safety interface relay, single-pole fire alarm voltage monitoring relay, green pilot light, isolated full capacity neutral lug
SPECIFICATIONS
Actuator Type : Handle
Dimensions : 30 in H x 24 in W x 8.63 in D
Enclosure Type : NEMA 1
Phase : 3
Short Circuit Current Rating : 200 kA
Terminal Type : Neutral Lug
Type : Low Voltage Main
Voltage Rating : 208 VAC
Amperage Rating : 200 A
Horsepower : 30 hp, 40 hp
Contact Form : 1NC-1NO
Number of Poles : 1
Manufacturer Eaton
Voltage 208 VAC
Current 2000 Amp
Enclosure Disconnect Type
Elevator Control Switch
Disconnect Enclosure Height 32.63 In
Disconnect Enclosure Depth 11.28 In
Disconnect Enclosure Width 24.7 In
Component Elevator Control Switch
Datasheet: ES4T2R2GF1NB
