Description

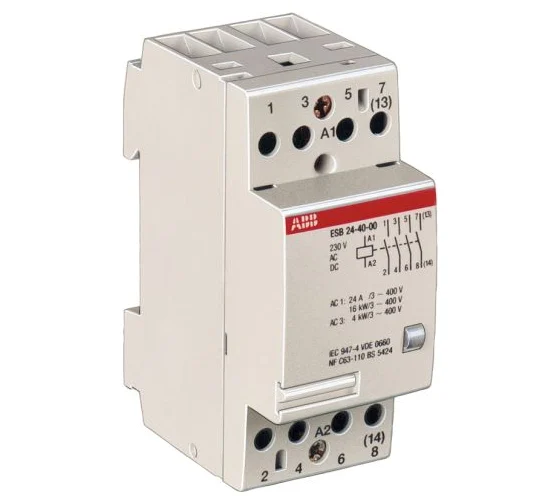

ESB24-40-24AC/DC ABB GHE3291102R0001 Installation Contactor 4 Pole 24AC/DC 16kW 24V DIN Rail RoHS
The ESB24 installation contactor is a 4 pole contactor suitable for modular switchboards. They are specially designed fitting to modular DIN rail products and for applications where customers want to use the panel design with high finger protection. Installation contactors are used in residential, commercial and industrial applications for the control of single or three-phase loads up to 24 A or switching of control signals. Further features are the noiseless and hum-free DC coil, the integrated overvoltage protection up to 5 kV and a switch position indication. Auxiliary contacts, distance pieces and sealing cover for protection against unauthorized changes are available as accessory.
Ordering
EAN:
4013614084416
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Dimensions
Product Net Width:
36mm
Product Net Height:
85mm
Product Net Depth:
65mm
Product Net Weight:
0.245kg
Container Information
Package Level 1 Units:
5 piece
Package Level 1 Width:
89 mm
Package Level 1 Height:
69 mm
Package Level 1 Length:
183 mm
Package Level 1 Gross Weight:
1.27 kg
Package Level 1 EAN:
4013614420290
Environmental
Ambient Air Temperature:
Operation -25 … +55 °C
Storage -40 … +80 °C
Maximum Operating Altitude Permissible:
2000 m
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 15g
Resistance to Vibrations acc. to IEC 60068-2-6:
5g / 3 … 150 Hz
RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment
Technical UL/CSA
Maximum Operating Voltage UL/CSA:
Main Circuit 480 V AC
Ampere Rating UL/CSA:
7.6 A
Horsepower Rating UL/CSA:
(220 … 240 V AC) Single Phase 3 Hp
(440 … 480 V AC) Three Phase 5 Hp
General Use Rating UL/CSA:
(acc. to UL 240 V) 24 A
(acc. to UL 480 V) 24 A
Connecting Capacity Main Circuit UL/CSA:
Stranded 16 … 8 AWG
Tightening Torque UL/CSA:
Control Circuit 8 in·lb
Main Circuit 9 in·lb
Connecting Capacity Control Circuit UL/CSA:
Stranded 16 … 10 AWG
Additional Information
Coil Consumption:
Average Holding Value 50 Hz 4 V·A
Average Pull-in Value 50 Hz 4 V·A
Coil Operating Limits:
(acc. to IEC 60947-4-1)0.85 … 1.1 x Uc (at θ ≤ 55 °C)
Connecting Capacity-Control Circuit:
Rigid 1/2x 1 … 4 mm²
Rigid 2x 2.5 mm²
Connecting Capacity-Main Circuit:
Flexible with Ferrule 1x 1.5 … 10 mm²
Flexible with Insulated Ferrule 1x 1.5 … 10 mm²
Flexible 1x 1.5 … 10 mm²
Rigid 1x 1.5 … 10 mm²
Rigid 2x 4 mm²
Degree of Protection:
IP20
Drop-out Voltage in % of Uc:
10 … 75
Electrical Durability:
AC-1 150000 cycle
AC-3 500000 cycle
AC-7a 150000 cycle
AC-7b 500000 cycle
Frequency (f):
40 … 450 Hz
Fuse Type:
Class K5 – 25 A
IIT Publishing Status:
Level 0 – Information enabled
Maximum Electrical Switching Frequency:
AC-1 300 cycles per hour
AC-3 600 cycles per hour
AC-7a 300 cycles per hour
AC-7b 600 cycles per hour
Mechanical Durability:
1000000 cycle
Mounting on DIN Rail:
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
Position 1 to 5
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
0
Number of Main Contacts NC:
0
Number of Main Contacts NO:
4
Number of Poles:
4
Pollution Degree:
3
Power Loss:
at Rated Operating Conditions per Pole 3 W
Product Main Type:
ESB24
Product Name:
Installation Contactor
Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1:
8 x Ie / AC-3
Rated Control Circuit Voltage (Uc):
24 V
Rated Frequency (f):
Control Circuit DC
Control Circuit 50 Hz
Control Circuit 60 Hz
Control Circuit 400 Hz
Main Circuit DC
Main Circuit 50 Hz
Main Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp):
6 kV
Rated Insulation Voltage (Ui):
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 500 V
acc. to UL/CSA 600 V
Rated Making Capacity AC-3 acc. to IEC 60947-4-1:
10 x Ie / AC-3
Rated Operational Current AC-1 (Ie):
(NC) 24 A
(NO) 24 A
Rated Operational Current AC-3 (Ie):
(230 V) Single Phase 9 A
(400 V) Three Phase 9 A
Rated Operational Current AC-7b (Ie):
(230 V) Single Phase 9 A
(400 V) Three Phase 9 A
Rated Operational Power AC-1 (Pe):
230 V Single Phase 5.5 kW
400 V Three Phase 16 kW
Rated Operational Power AC-3 (Pe):
(230 V) Single Phase 1.3 kW
(400 V) Three Phase 4 kW
Rated Operational Power AC-7a (Pe):
(230 V) Single Phase 5.5 kW
(400 V) Three Phase 16 kW
Rated Operational Voltage:
Main Circuit 220 V DC
Main Circuit 400 V AC
Rated Short-time Withstand Current (Icw):
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 kA
Recommended Screw Driver:
Control Circuit Pozidriv 1
Main Circuit Pozidriv 1
Remarks:
Installation contactor, noiseless/humfree, high insulation, reliable function, long life
RoHS Date:
0456
Standards:
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
IEC/EN 61095
UL 60947-1
UL 60947-4-1
Terminal Type:
Screw Terminals
Tightening Torque:
Control Circuit 0.9 N·m
Main Circuit 1 N·m
Wire Stripping Length:
Control Circuit 7 mm
Main Circuit 10 mm
Manufacturer: ABB
Manufacturer Part Number: ESB24-40-24AC/DC
Datasheet: Datasheet
