Description

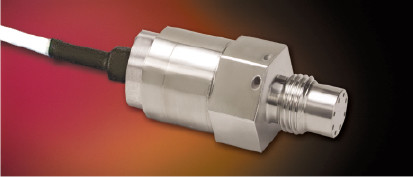

ETQ-13-375(M) Kulite Miniature 4-20Ma Output Pressure Transmitter
The ETQ-13-375 Series of miniature pressure transmitters are flush diaphragm units utilizing a Kulite Piezoresistive Sensor as the sensing element. Mounted within the body of the transducer is a hybrid regulator-amplifier which provides a stable, low noise 4-20mA output, with a 12 – 32 VDC unregulated input. The flush diaphragm is protected against mechanical damage by a screen which is standard.
Features
4-20mA Output
2 Wire Operation
Hybrid Microelectronic Signal Conditioner
Flush Diaphragm Coupled With Protective Screen
All Welded Construction
Silicon on Silicon Integrated Sensor VIS®
Qualified Configuration For Industrial Applications
Economically Designed For OEM Applications
3/8-24 UNJF or M10 X 1 Thread
Intrinsically Safe Applications Available (IS-ETQ-13-375)
Manufacturer: Kulite Semiconductor
Manufacturer Part Number: ETQ-13-375(M)
Datasheet: Datasheet
