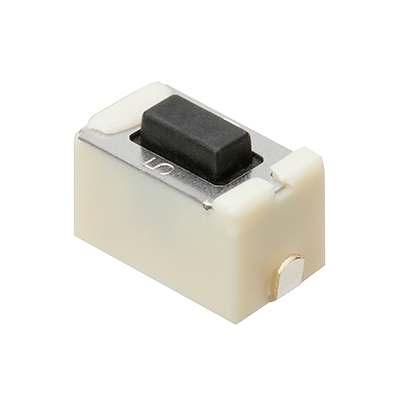

EVQ-5PN04K Panasonic Switch Tactile N.O. SPST Rectangular Button J-Bend 0.05A 12VDC 2.4N SMD 2.4N operating force, 4.3mm H, 0.25mm RoHS
Spec
Item Specifications
Product Number EVQ5PN04K
Part Number EVQ5PN04K
Type: EVQ5P
External dimensions (LxW) (mm) 6.0 x 3.5
External dimensions (H) (mm) 4.30
Mounting Height (mm) 4.30
Dimensions excluding push plate (mm) 4.00
Operating direction Top push
Applicable soldering Reflow
Mounting type SMD
Type Snap action / Push-on type SPST
Rating 10?A 2V DC to 50mA 12V DC (Resistive load)
Contact Resistance (m? max.) 100
Insulation Resistance (M? min. at 100V DC) 100
Dielectric Withstanding Voltage 250 V AC (for 1minute)
Bouncing 10ms max. (ON, OFF)
Operating Force (N) 2.4
Travel Type Short Push Travel
Travel (mm) 0.25
Operating Life 30,000 cycles
Operating Temperature -30°C to +85°C
Storage Temperature -40°C to +85°C (Bulk)
-20°C to +60°C (Taping)
Terminal type J-bent
Push Plate
(Actuator) With
Push Plate Color Black
Ground Terminal Without
Boss Without
Packaging Embossed Taping (Reel Pack)
Minimum Quantity/Packing Unit 2,500 pcs.
Quantity/Carton 12,500 pcs.
Manufacturer:Panasonic
Datasheet:Panasonic/EVQ.pdf
