Description

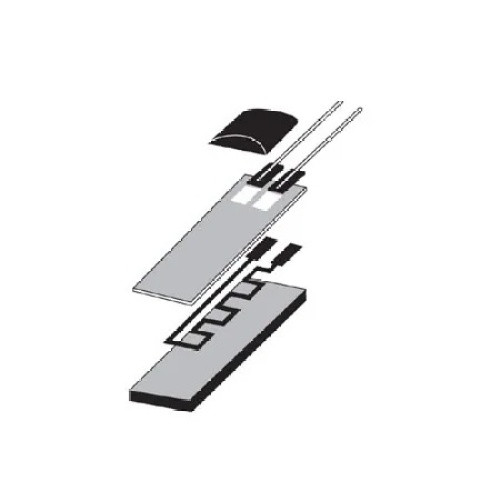

F2222-1000-B-100 Omega RTD Sensor, Flat Profile Thin Film Platinum Dimensions 2.2X2.2mm Nominal Resistance; 1000 Temp Tolerance; Class B (-70 to 500C) RoHS
Flat, Small Profile
Specification
Sold in Packs of 100
Flat, Small Profile
Specification DIN EN 60751 (According to IEC 751)
Temperature Range -70 to 500°C (-94 to 932°F)
Temperature Coefficient a = 0.00385
100, 500 and 1000 Ω Configurations
Class A, B and 1⁄3 B Tolerances
Long Term Stability Maximum Ro-Drift 0.04% After 1000 Hours at 500°C
Vibration Resistance at Least 40 g Acceleration at 10 to 2000 Hz
Shock Resistance at 100 g Acceleration with 8 ms Half Sine Wave
Insulation Resistance >10MΩ at 20°C: >1MΩ at 500°C
Self Heating 0.4 K/mW at 0°C
Response Time Water Current (v=0.4 m/s) t0.5 = 0.2 s; t0.9 = 0.4 s Air Stream (v = 1 m/s) t0.5 = 4.0 s; t0.9 = 12.0 s
Platinum Clad Nickel Wire Leads 10 L x 0.2 mm D (0.39 x 0.008″)
Product Overview
Insulation Resistance > 10 MΩ
Insulation Resistance Note >10 MΩ @ 20°C; >1 MΩ @ 500°C
Number of Wires 2
Response Time, Air 4.0 sec @ 50%; 12.0 sec @ 90%
Response Time Note Response Time Water Current (v=0.4 m/s) t0.5 = 0.2 s; t0.9 = 0.4 s Air Stream (v = 1 m/s) t0.5 = 4.0 s; t0.9 = 12.0 s
Response Time, Water 0.2 sec @ 50%; 0.4 sec @ 90%
Self Heating Effect 0.4 K/mW @ 0°C
Sensor Height 0.8 mm
Series ID F-Series
Shock Resistance 100 g Acceleration with 8 ms Half Sine Wave
Temperature Coefficient 0.00385Ω/Ω/°C
Temperature Sensor Type RTD
Vibration Resistance 10 to 2000 Hz sweep rate, acceleration 40g
Wire Diameter 0.2 mm
Wire Length 10 mm
Dimensions mm WxLxH; 2.2 x 2.2 x 0.8, Nominal Resistance; 1000, Class A (-30 to 350°C)
Datasheet:F_SERIES.pdf
