Description

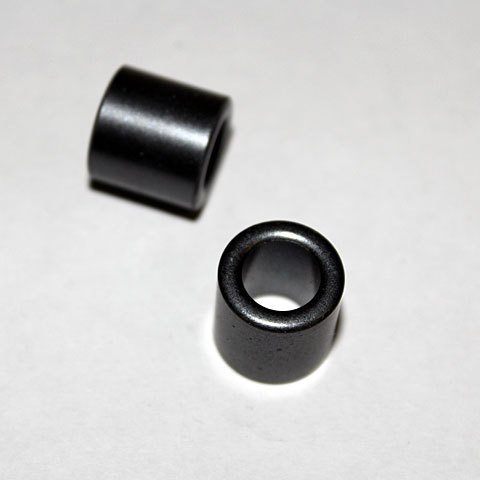

Fair-Rite Ferrite Toroid, 43 material, for wideband transformers up to 50MHz. ui=850. Dia:12.65mm, H: 12.82mm Hole Size 7.8mm
| OD(A) = 0.5 in / 12.7 mm +/- 0.25 mm ID(B) = 0.281 in / 7.15 mm +/- 0.20 mm Ht(C) = 0.188 in / 4.9 mm +/- 0.25 mm |
| AL=440 +/- 20 % uH=(AL*Turns2)/1000 Actual measured AL using 10 turns #28 wire |
| Temperature Stability (ppm /°C) = 12500 |
| Color Code = shiny black |
| Application Freq Range Wideband Transformers 5 – 400 MHz Power Transformers 0.5 – 30 MHz RFI Suppression 5 – 500 MHz |
Fair-Rite Ferrite Toroid, 43 material, for wide band transformers up to 50MHz. ui=850.
Size: Diameter 12.65mm, Height 4.75mm Hole Size 7mm, color Grey
Fair-Rite PN# 5943000301
Manufacturer Part Number: FT50B43
Manufacturer: Electronic Components
