Description

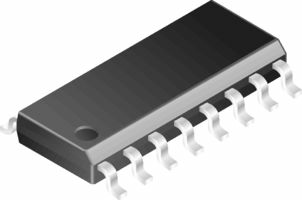

Fairchild – FSC MM74HC595M ICShift Register, HC Family, 74HC595, Serial to Parallel, 1 Element, 8 bit, SOIC, 16 Pins W/LATCH 8BIT 16-SOIC
Fsc – Fsc Mm74Hc595M Register Logic IC; Logic Type:Shift Register; Logic Family:HC; Logic Base Number:74595; Termination:SMD; Package/Case:16-SOIC; No. of Pins:16; Operating Temperature Range:-400C to +850C
The MM74HC595M is a 8-bit high-speed Shift Register utilizes advanced silicon-gate CMOS technology. This device possesses the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads. This device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has 8 3-STATE outputs. Separate clocks are provided for both the shift register and the storage register. The shift register has a direct-overriding clear, serial input and serial output (standard) pins for cascading. Both the shift register and storage register use positive-edge triggered clocks. If both clocks are connected together, the shift register state will always be one clock pulse ahead of the storage register. The 74HC logic family is speed, function and pin-out compatible with the standard 74LS logic family.
Specifications
Product Category: Counter Shift Registers
Counting Sequence: Serial to Serial/Parallel
Number of Circuits: 1
Number of Bits: 8 bit
Package / Case: SOIC-16
Logic Family: 74HC
Logic Type: CMOS
Number of Input Lines: 1
Output Type: 3-State
Propagation Delay Time: 294 ns, 58 ns, 50 ns
Supply Voltage – Max: 6 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Packaging: Tube
Function: Register
Series: MM74HC595
Width: 4 mm
Brand: ON Semiconductor / Fairchild
Mounting Style: SMD/SMT
Number of Output Lines: 9
Operating Supply Voltage: 2 V to 6 V
Product Type: Counter Shift Registers
Factory Pack Quantity: 960
Subcategory: Logic ICs
Part # Aliases: MM74HC595M_NL
Unit Weight: 0.005044 oz
Manufacturer Part Number: MM74HC595M
Manufacturer: Fairchild Semiconductor
