Description

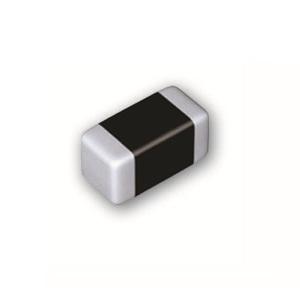

FBMJ4516HS720NT Taiyo Yuden | BEAD INDUCTORS [Chip Bead Inductors for Power Lines (FB series M type)[FBMJ]] 1806, 7mOHM, 6A ROHS
Specifications
| Status | Mass Production |
| Impedance [100MHz] | 72 Ω ± 30 % |
| Case Size (EIA/JIS) | 1806/4516 |
| Rated Current (max) | 6 A |
| DC Resistance (max) | 7 mΩ |
| Z Measuring Frequency | 100 MHz |
| Operating Temp. Range | -40 to +125 ? (Including-self-generated heat) |
| Dimension L | 4.5 ±0.3 mm |
| Dimension W | 1.6 ±0.2 mm |
| Dimension T | 1.1 ±0.2 mm |
| Dimension e | 0.5 ±0.3 mm |
| RoHS2 Compliance (10 subst.) | Yes |
| REACH Compliance (168 subst.) | Yes |
| IEC62474 (Ver. D10.00) Compliance | Yes |
| Soldering | Reflow/Wave |
| Standard Quantity | Taping Embossed 2000pcs |
Features
Power supply units:
Withstand large current (allowable current: up to 7.5A (FBMJ1608))
Resistance to high energy
High reliability
Withstand large current (allowable current: up to 7.5A (FBMJ1608))
Resistance to high energy
High reliability
There are several variations of the FBMJ type
Applications
Deals with power line radiated and conducted noise.
Provides waveform correction of digital signals and high frequency noise
countermeasures in various types of digital equipment.
Automotive
Computer Peripherals
Differential transmission line on USB and similar products
Mobile devices which require lower power consumption
Manufacturer:Taiyo Yuden
Datasheet:beads_inductor_all_e.pdf
