Description
FCI Amphenol FFC connectors are ideal for flexible circuitry. The connectors are available in a variety of options including LIF (light insertion force) and ZIF (zero insertion force); top and bottom contact options; vertical and right angle orientations; as well as surface-mount and through-hole terminations in contact spacing options down to 3mm.

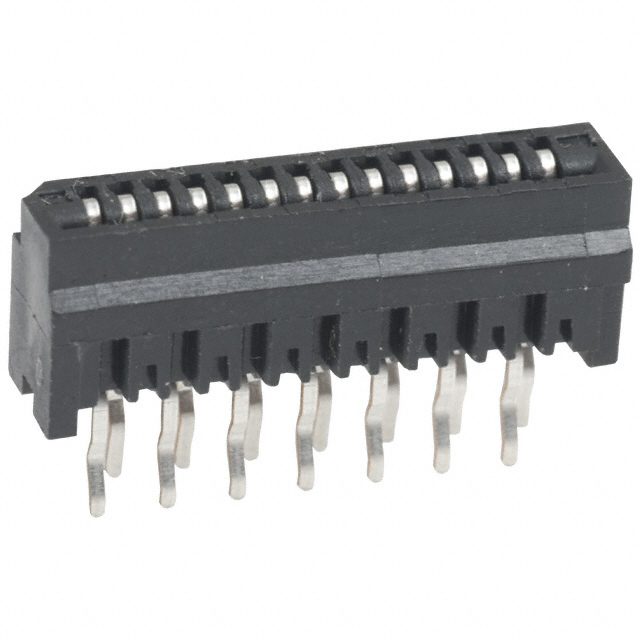

Amphenol FCI HLW14S-2C7LF FCI HLW14S-2C7LF Connector FFC / FCP 14 Position 1Row
Series:HLW-S, Gender:Receptacle, Pitch Spacing:1mm, No. of Contacts:14, No. of Rows:1, Contact Plating:Tin, FFC / FPC Thickness:0.3mm, Contact Termination Type:Through Hole, Contact Position:- , RoHS
| Type | FFC/FPC Connector |
| Contact Gender | SKT |
| Mounting Style | Through Hole |
| Number of Contact Rows | 1 |
| Number of Contacts | 14POS |
| Pitch (mm) | 1mm |
| Body Orientation | Straight |
| Contact Resistance Max | 30mOhm |
| Voltage Rating Max | 100VDC/100VAC |
| Current Rating (Max) | 1/ContactA |
| Housing Material | Polybutylene Terephthalate |
| Housing Color | Black |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin |
| Termination Method | Solder |
| Product Height (mm) | 5.9mm |
| Product Depth (mm) | 3.9mm |
| Product Length (mm) | 16.6mm |
Manufacturer:Fci Connectors
Datasheet:Amphenol/HLW14S-2C7LF.pdf
