Description

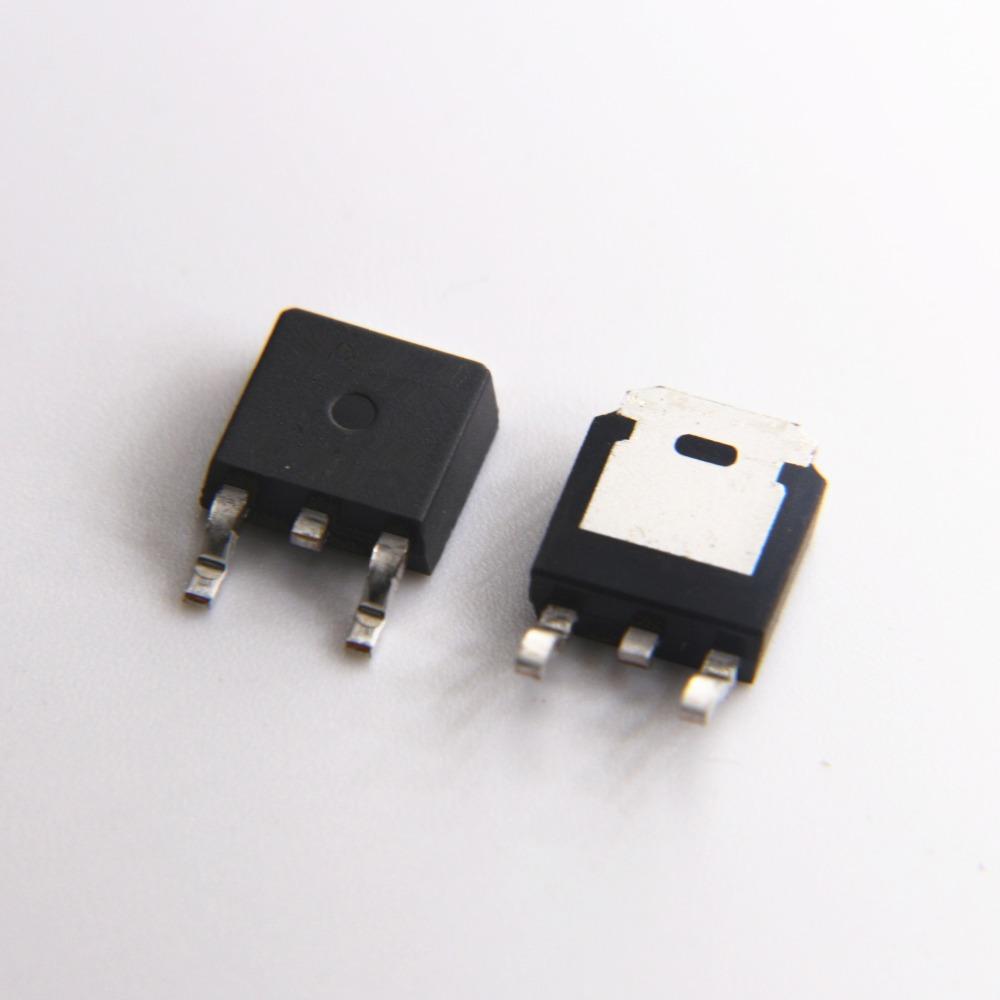

ON Semiconductor FDD390N15A N-Channel Power Mosfet, 150V, 28A, Rds:46mohm,D-PAK TO-252 Lead free / RoHS: Compliant
This N-Channel MOSFET is produced using an advanced PowerTrench® process that has been tailored to minimize the on-state resistance while maintaining superior switching performance.
Features
RDS(on) = 33.4mΩ ( Typ.) @ VGS = 10V, ID = 26A
RDS(on) = 42.2mΩ ( Typ.) @ VGS = 4.5V, ID = 20A
Fast Switching Speed
Low gate charge, QG = 17.6nC ( Typ.) @ VGS = 10V
High Performance Trench Technology for Extremely Low RDS(on)
High Power and Current Handling Capability
RoHS Compliant
Applications
LED TV
Consumer Appliances
Specifications
Manufacturer: ON Semiconductor
Product Category: MOSFET
RoHS
Technology: Si
Mounting Style: SMD/SMT
Package / Case: TO-252-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds – Drain-Source Breakdown Voltage: 150 V
Id – Continuous Drain Current: 26 A
Rds On – Drain-Source Resistance: 33.4 mOhms
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 150 C
Pd – Power Dissipation: 63 W
Configuration: Single
Tradename: PowerTrench
Packaging: Cut Tape
Packaging: Reel
Height: 2.39 mm
Length: 6.73 mm
Series: FDD390N15ALZ
Transistor Type: 1 N-Channel
Width: 6.22 mm
Brand: ON Semiconductor / Fairchild
Product Type: MOSFET
Factory Pack Quantity: 2500
Subcategory: MOSFETs
Unit Weight: 0.009171 oz
Manufacturer:ON Semiconductor
Datasheet:MDD1051.pdf
