Description

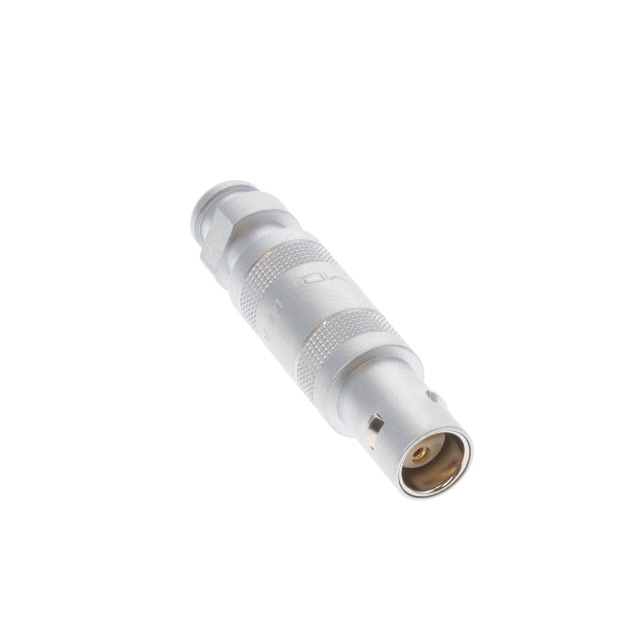

FFA.0S.302.CLAC32 Lemo Push-Pull Metal Connector Plug, Female Sockets and Male Pins 2 Position 10A 0.087″ ~ 0.126″ (2.20mm ~ 3.20mm) IP50 – Dust Protected Free Hanging (In-Line) Shielded UL94 V-0 Backshell Solder Cup
Color: Silver
Shielding: Shielded
Type: Circular Connector Assemblies
Primary Material: Metal
Shell Material: Metal
Shell Finish Material: Brass
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Plug, Female Sockets and Male Pins
Number of Positions: 2
Shell Size – Insert: 2
Orientation: Keyed
Current Rating: 10A (Amps)
Termination: Solder Cup
Mounting Feature:
Mounting Type: Free Hanging (In-Line)
Fastening Type: Push-Pull
Manufacturer Part Number: FFA.0S.302.CLAC32
Manufacturer: Lemo
Datasheet: Datasheet
