Description

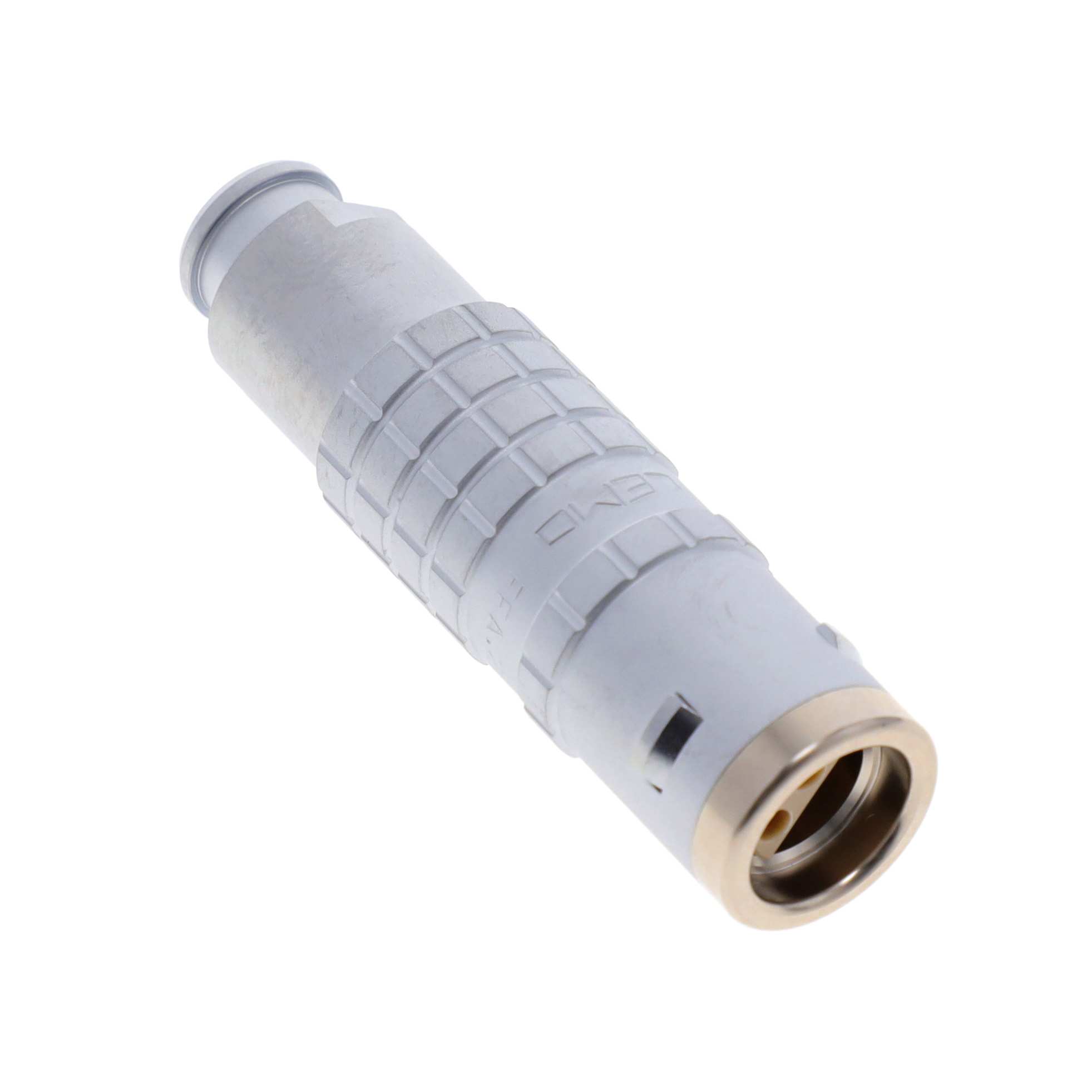

FFA.2E.304.CLAC60Z Lemo Push-Pull Metal Connector Plug, Female Sockets and Male Pins 4 Position 15A 0.220″ ~ 0.236″ (5.60mm ~ 6.00mm) IP66/IP68 – Dust Tight, Water Resistant, Waterproof Free Hanging (In-Line) Shielded UL94 V-0 Backshell Solder Cup
Color: Silver
Shielding: Shielded
Type: Circular Connector Assemblies
Primary Material: Metal
Shell Material: Metal
Shell Finish Material: Brass
Mating Contact Finish: Gold
Ingress Protection:IP66/IP68 – Dust Tight, Water Resistant, Waterproof
Connector Type: Plug, Female Sockets and Male Pins
Number of Positions: 4
Shell Size – Insert: 4
Orientation: Keyed
Current Rating: 15A (Amps)
Termination: Solder Cup
Mounting Feature:
Mounting Type: Free Hanging (In-Line)
Fastening Type: Push-Pull
Manufacturer Part Number: FFA.2E.304.CLAC60Z
Manufacturer: Lemo
Datasheet: Datasheet
