Description

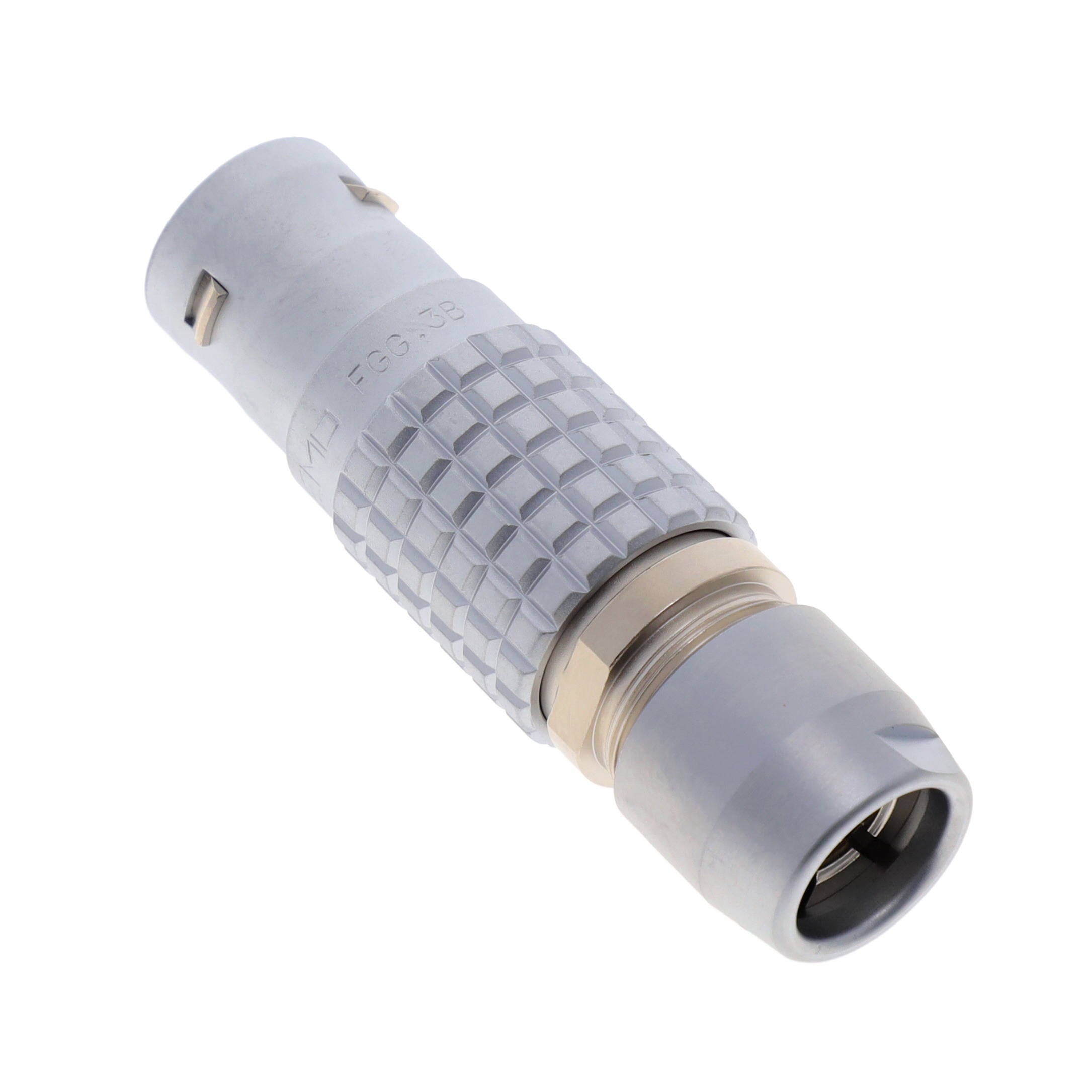

FGG.3B.330.CLAD72 Lemo Push-Pull Metal Connector Plug, Male Pins 30 Position 3.5A 0.244″ ~ 0.303″ (6.20mm ~ 7.70mm) IP50 – Dust Protected Free Hanging (In-Line) Shielded UL94 V-0 Backshell Solder Cup
Color: Silver
Shielding: Shielded
Type: Circular Connector Assemblies
Primary Material: Metal
Shell Material: Metal
Shell Finish Material: Brass
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Plug, Male Pins
Number of Positions: 30
Shell Size – Insert: 30
Orientation: G
Current Rating: 3.5A (Amps)
Termination: Solder Cup
Mounting Feature:
Mounting Type: Free Hanging (In-Line)
Fastening Type: Push-Pull
Manufacturer Part Number: FGG.3B.330.CLAD72
Manufacturer: Lemo
Datasheet: Datasheet
