Description

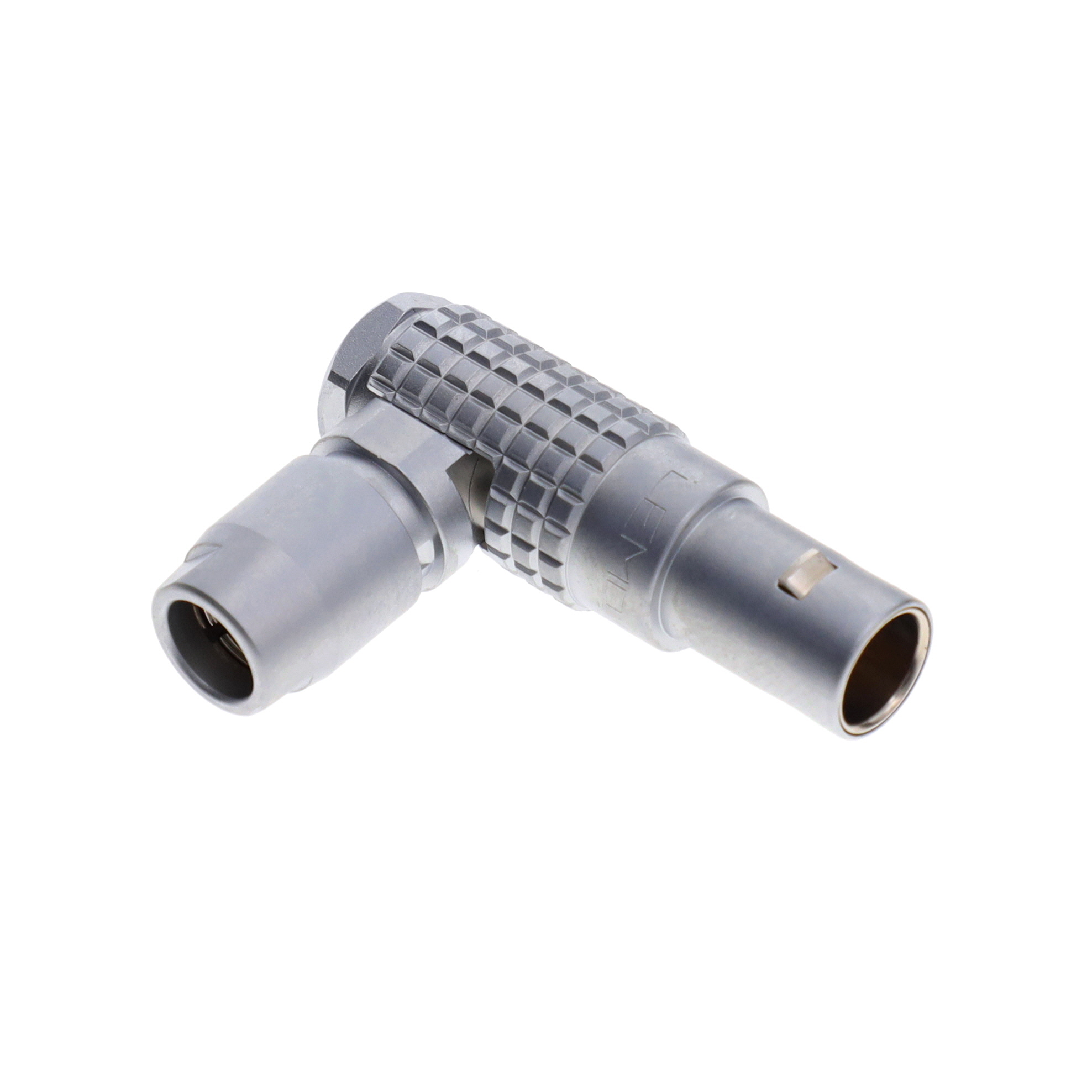

FPG.0B.306.CLAD52 Lemo Push-Pull Metal Connector Plug, Male Pins 6 Position 2.5A 0.165″ ~ 0.205″ (4.20mm ~ 5.20mm) IP50 – Dust Protected Free Hanging (In-Line), Right Angle Shielded UL94 V-0 Backshell Solder Cup
Color: Silver
Shielding: Shielded
Type: Circular Connector Assemblies
Primary Material: Metal
Shell Material: Metal
Shell Finish Material: Brass
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Plug, Male Pins
Number of Positions: 6
Shell Size – Insert: 6
Orientation: G
Current Rating: 2.5A (Amps)
Termination: Solder Cup
Mounting Feature:
Mounting Type: Free Hanging (In-Line), Right Angle
Fastening Type: Push-Pull
Manufacturer Part Number: FPG.0B.306.CLAD52
Manufacturer: Lemo
Datasheet: Datasheet
