Description

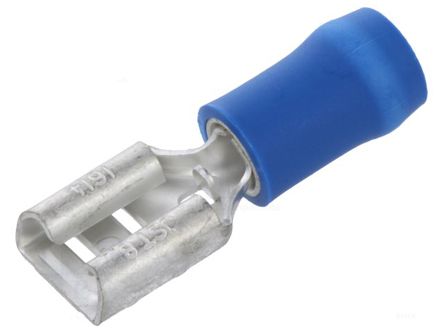

FVDDF2-250A (LF) JST Female Quick Disconnect Terminal Blue Insulated Crimp Receptacle 6.35mm x 0.81mm, 0.25″ x 0.032″ Vinyl-insulated RoHS
A range of insulated crimp receptacle terminals with a copper sleeve and vinyl insulation. These crimp receptacle terminals are available for use with a variety tab sizes including .110, .187, .250 and .375 and a range of wire sizes from 26 to 10 AWG
Specifications
Minimum Wire Size mm2 1mm2
Tab Size 6.35 x 0.8mm
Maximum Wire Size mm2 2.6mm2
Minimum Wire Size AWG 16AWG
Insulation Insulated
Maximum Wire Size AWG 14AWG
Insulation Material Vinyl
Contact Material Copper
Overall Length 20.5mm
Colour Blue
Series FVDDF
Manufacturer: JST
MFG Part #: FVDDF2-250A(LF)
