Description

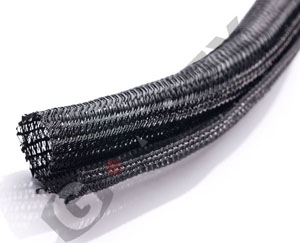

G-APEX BS1000 – Semi-Rigid Wrappable Split Braided Sleeving
BRAIDED SLEEVING
Application
Designed from PET monofilament yearns, unique construction and split makes it simply self-closes around a group of wires. It’s flexible and lightweight enough to bend to a tight radius without distorting and splitting for allowing coverage around inline plugs, connectors and splices without the need for any additional fasteners (Velcro, tape, etc.), which can instead of slit loom and spiral wrap.
Features
UV light resistant polyester yarn
Not affected by most chemicals and solvents
PET material has excellent durability property
Excellent abrasion and cut-through resistance
Operating Temperature Range
Operating temperature : -40°C~125°C
Color
black,Other colors on demand provided
Specifies the size, according to customer demand for the crop specific requirements provided separately
|
Part Number |
Nominal Size |
Opening expansion width (mm) |
Packing (Feet / Roll) |
Packing (Meter / Roll) |
|
|
mm |
inch |
||||
|
BS1000-0032 |
3.2 |
1/8” |
23±4 |
100’ |
30.5 |
|
BS1000-0064 |
6.4 |
1/4” |
45±4 |
100’ |
30.5 |
|
BS1000-0127 |
12.7 |
1/2” |
60±4 |
75’ |
22.8 |
|
BS1000-0191 |
19.1 |
3/4” |
89±4 |
50’ |
15.2 |
|
BS1000-0254 |
25.4 |
1” |
110±4 |
25’ |
7.6 |
|
BS1000-0381 |
38.1 |
11/2” |
150±4 |
25’ |
7.6 |
|
BS1000-0508 |
50.8 |
2” |
205±5 |
25’ |
7.6 |
Manufacturer Part Number: BS1000
