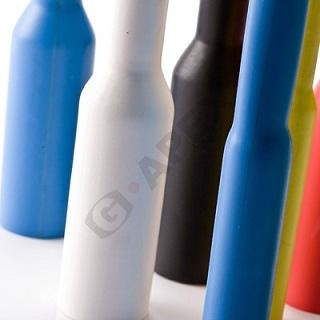

G-APEX E255532 General Purpose, Flame Retardant Polyolefin Tubing
- Very flexible, highly flame retardant (colors only)
- Resistant to common fluids and solvents
- Excellent physical, chemical, and electrical properties
- The material meet standard Sony-SS-00259,RoHS
- Shrinkable Ratio: 2:1
- Meet RoHS
| Part Number | Nominal Size(mm) | As supplied (mm) | After recovered (mm) | Standard Length (Meter) | ||
|---|---|---|---|---|---|---|
| I.D. | W.T. | I.D.(max) | W.T. | |||
| G5-0008 | 0.8 | 1.0±0.2 | 0.15±0.05 | 0.55 | 0.25±0.05 | 200 |
| G5-0010 | 1.0 | 1.5±0.3 | 0.20±0.05 | 0.6 | 0.33±0.05 | 200 |
| G5-0015 | 1.5 | 2.0±0.3 | 0.20±0.05 | 0.75 | 0.36±0.05 | 200 |
| G5-0020 | 2.0 | 2.5±0.3 | 0.20±0.05 | 1.0 | 0.44±0.05 | 200 |
| G5-0025 | 2.5 | 3.0±0.3 | 0.20±0.05 | 1.25 | 0.44±0.05 | 200 |
| G5-0030 | 3.0 | 3.5±0.3 | 0.25±0.05 | 1.5 | 0.44±0.05 | 200 |
| G5-0035 | 3.5 | 4.0±0.3 | 0.25±0.05 | 1.75 | 0.44±0.05 | 200 |
| G5-0040 | 4.0 | 4.5±0.3 | 0.25±0.05 | 2.0 | 0.44±0.05 | 200 |
| G5-0045 | 4.5 | 5.0±0.3 | 0.25±0.05 | 2.25 | 0.44±0.08 | 100 |
| G5-0050 | 5.0 | 5.5±0.3 | 0.25±0.05 | 2.5 | 0.56±0.08 | 100 |
| G5-0060 | 6.0 | 6.5±0.3 | 0.28±0.05 | 3.0 | 0.56±0.08 | 100 |
| G5-0070 | 7.0 | 7.6±0.3 | 0.30±0.06 | 3.5 | 0.56±0.08 | 100 |
| G5-0080 | 8.0 | 8.6±0.3 | 0.30±0.06 | 4.0 | 0.56±0.08 | 100 |
| G5-0090 | 9.0 | 9.6±0.3 | 0.30±0.06 | 4.5 | 0.56±0.08 | 100 |
| G5-0100 | 10.0 | 10.7±0.4 | 0.30±0.06 | 5.0 | 0.56±0.08 | 100 |
| G5-0110 | 11.0 | 11.7±0.4 | 0.30±0.06 | 5.5 | 0.56±0.08 | 100 |
| G5-0120 | 12.0 | 12.7±0.4 | 0.30±0.06 | 6.0 | 0.56±0.08 | 100 |
| G5-0130 | 13.0 | 13.7±0.4 | 0.35±0.07 | 6.5 | 0.69±0.08 | 100 |
| G5-0140 | 14.0 | 14.7±0.4 | 0.35±0.07 | 7.0 | 0.69±0.08 | 100 |
| G5-0150 | 15.0 | 15.7±0.5 | 0.35±0.07 | 7.5 | 0.69±0.08 | 100 |
| G5-0160 | 16.0 | 16.7±0.5 | 0.35±0.07 | 8.0 | 0.69±0.08 | 100 |
| G5-0170 | 17.0 | 17.5±0.6 | 0.35±0.12 | 8.5 | 0.77±0.08 | 100 |
| G5-0180 | 18.0 | 19.0±0.5 | 0.40±0.10 | 9.0 | 0.77±0.15 | 100 |
| G5-0200 | 20.0 | 21.0±0.5 | 0.40±0.10 | 10.0 | 0.77±0.15 | 100 |
| G5-0220 | 22.0 | 23.0±0.5 | 0.40±0.10 | 11.0 | 0.77±0.15 | 100 |
| G5-0250 | 25.0 | 26.0±1.0 | 0.45±0.10 | 12.5 | 0.87±0.15 | 50 |
| G5-0280 | 28.0 | 29.0±1.0 | 0.45±0.10 | 14.0 | 0.87±0.15 | 50 |
| G5-0300 | 30.0 | 31.5±1.0 | 0.45±0.10 | 15.0 | 0.87±0.15 | 50 |
| G5-0350 | 35.0 | 37.0±1.0 | 0.50±0.10 | 17.5 | 0.97±0.15 | 50 |
| G5-0400 | 40.0 | 40.5±1.0 | 0.50±0.10 | 20.0 | 0.97±0.15 | 50 |
| G5-0450 | 45.0 | 46.5±1.0 | 0.50±0.10 | 22.5 | 0.97±0.15 | 25 |
| G5-0500 | 50.0 | 50.5±1.0 | 0.50±0.10 | 25.0 | 0.97±0.15 | 25 |
| G5-0600 | 60.0 | 60.0±3.0 | 0.80±0.20 | 30.0 | 1.30±0.20 | 25 |
| G5-0700 | 70.0 | 70.0±3.0 | 0.80±0.20 | 35.0 | 1.50±0.20 | 25 |
| G5-0800 | 80.0 | 80.0±3.0 | 0.80±0.30 | 40.0 | 1.50±0.30 | 25 |
| G5-0900 | 90.0 | 90.0±4.0 | 0.80±0.30 | 45.0 | 1.50±0.30 | 25 |
| G5-1000 | 100 | 100.0±4.0 | 0.80±0.30 | 50.0 | 1.50±0.30 | 25 |
| G5-1200 | 120 | 120.0±4.0 | 0.80±0.30 | 60.0 | 1.50±0.30 | 15 |
| G5-1500 | 150 | 150.0±4.0 | 0.80±0.30 | 75.0 | 1.50±0.30 | 15 |
| G5-1800 | 180 | 180.0±4.0 | 0.80±0.30 | 90.0 | 1.50±0.30 | 15 |
| Property | Specification Requirements | Test Method | Typical Value |
|---|---|---|---|
| Longitudinal shrinkage | 5% max. | ASTM D 2671 | ≤5% |
| Concentricity | 70%min. | ASTM D 2671 | ≥70% |
| Tensile strength | 10.4MPa min. | ASTM D 638 | ≥14.0MPa |
| Elongation at break | 200% min. | ASTM D 638 | ≥400% |
| Heat shock | No cracking | ASTM D 2671 | Pass |
| Cold bend (-55?,4 hrs.) | No cracking | ASTM D 2671 | Pass |
| Heat aging 158°C,168 hrs. | |||
| Tensile strength after aging | 70% of original (MIN.) | ASTM D 638 | ≥90% |
| Elongation at break after aging | 100% min. | ASTM D 638 | ≥300% |
| Dielectric voltage withstand and breakdown | 2500V,60sec, No breakdown |
UL224 | Pass |
| Dielectric strength | 19.7KV/mm min. | ASTM D 2671 | 25KV/mm |
| Volume resistance | 1014Ω?cm min. | ASTM D 876 | ≥1014Ω?cm |
| Copper corrosion | No corrosion | ASTM D 2671 | Pass |
| Copper stability | Elongation ≥100% | ASTM D 2671 | Pass |
| Flammability | VW-1 | UL224 | Pass |
