Description

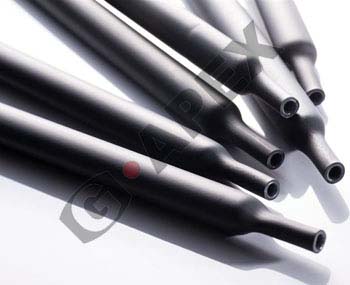

G-APEX FR150-150? Flexible Polyolefin heat shrinkable tubing
HIGH TEMPERATURE HEAT SHRINKABLE TUBE
Application
Soft polyolefin with high temperature resistant materials. Specially designs for protection of automotive wire harnesses and assemblies in resistance to diesel and lubricants. Providing protection in harsh environment.
Features
Shrink ratio: 2:1
Excellent diesel and chemical resistant.
Softness and flame retardant.
RoHS compliant
Operating Temperature Range
Operating temperature : -55? ~ 150?
Minimum shrink temperature : 80°C
Minimum fully recovery temperature : 120°C
Certification / Specification
AMS-DTL-23053/5
Color
black,Other colors on demand provided
Specifies the size, according to customer demand for the crop specific requirements provided separately
|
Part Number |
Nominal Size(mm) |
As supplied (mm) |
After recovered (mm) |
Standard Length (Meter) |
|
|
I.D.(min) |
I.D.(max) |
W.T. |
|||
|
FR150-0032 |
3.2 |
3.2 |
1.6 |
0.8±0.2 |
50 |
|
FR150-0048 |
4.8 |
4.8 |
2.4 |
0.8±0.2 |
50 |
|
FR150-0060 |
6.0 |
6.0 |
3.5 |
0.9±0.2 |
50 |
|
FR150-0090 |
9.0 |
9.0 |
5.0 |
1.0±0.2 |
50 |
|
FR150-0120 |
12.0 |
12.0 |
7.0 |
1.25±0.2 |
30 |
|
FR150-0180 |
18.0 |
18.0 |
10.0 |
1.45±0.25 |
30 |
|
FR150-0250 |
25.0 |
25.0 |
13.0 |
1.8±0.3 |
30 |
|
FR150-0380 |
38.0 |
38.0 |
19.0 |
2.4±0.3 |
15 |
|
FR150-0510 |
51.0 |
51.0 |
25.0 |
2.8±0.4 |
15 |
Manufacturer Part Number: FR150
Manufacturer: Electronic Components
