Description

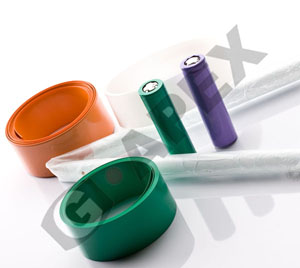

G-APEX YLPET – PET Environment Friendly Heat Shrinkable Tubing
PET HEAT SHRINKABLE TUBING
Application
Made from Polyethylene terephthalate. Excellently withstand to weathering, heating and cracking between temperature -40? to 125?. Full environment friendly material can meet RoHS standard. Apply in capacitors, battery, coil windings, bus bar, electric components and fluorescent light bulb encapsulation.
Features
?Shrinkable Ratio:2:1
?Operates up to 125?
?Resistant to most chemicals and oils
Operating Temperature Range
?Operating temperature : -40°C~125°C
?Minimum shrink temperature : 60?
?Minimum fully recovery temperature : 125?
Certification / Specification
UL224 File no.E469056
Color
black,Other colors on demand provided
Specifies the size, according to customer demand for the crop specific requirements provided separately
|
Part Number
|
Nominal Size(mm)
|
Lay flat(mm)
|
W.T.(mm)
|
Horizontal shrinkage ratio
|
Vertical Shrinkage ratio
|
|
YPET0003
|
3
|
5.6±0.2
|
0.08±0.015
|
48±4
|
8±3
|
|
YPET0004
|
4
|
7.1±0.2
|
0.08±0.015
|
48±4
|
8±3
|
|
YPET0005
|
5
|
9.0±0.2
|
0.08±0.015
|
48±4
|
8±3
|
|
YPET0006
|
6
|
10.6±0.2
|
0.08±0.015
|
48±4
|
8±3
|
|
YPET0063
|
6.3
|
11.0±0.2
|
0.08±0.015
|
48±4
|
8±3
|
|
YPET0008
|
8
|
13.9±0.2
|
0.10±0.02
|
48±4
|
8±3
|
|
YPET0100
|
10
|
16.9±0.3
|
0.10±0.02
|
48±4
|
8±3
|
|
YPET0120
|
12
|
20.2±0.3
|
0.10±0.02
|
45±4
|
8±3
|
|
YPET0125
|
12.5
|
21.1±0.3
|
0.10±0.02
|
45±4
|
8±3
|
|
YPET0130
|
13
|
21.7±0.3
|
0.10±0.02
|
45±4
|
8±3
|
|
YPET0145
|
14.5
|
24.1±0.3
|
0.10±0.02
|
45±4
|
8±3
|
|
YPET0160
|
16
|
26.7±0.3
|
0.11±0.02
|
45±4
|
8±3
|
|
YPET0180
|
18
|
29.8±0.3
|
0.11±0.02
|
45±4
|
8±3
|
|
YPET0200
|
20
|
32.9±0.3
|
0.11±0.02
|
45±4
|
8±3
|
|
YPET0220
|
22
|
36.2±0.3
|
0.11±0.02
|
45±4
|
8±3
|
|
YPET0250
|
25
|
41.1±0.5
|
0.11±0.02
|
45±4
|
8±3
|
|
YPET0300
|
30
|
49.1±0.5
|
0.11±0.02
|
45±4
|
8±3
|
|
YPET0350
|
35
|
56.7±0.5
|
0.11±0.02
|
45±4
|
8±3
|
|
YPET0400
|
40
|
64.0±1.5
|
0.13±0.03
|
45±4
|
8±3
|
|
YPET0450
|
45
|
72.0±1.5
|
0.20±0.03
|
40±5
|
15±5
|
|
YPET0500
|
50
|
84.0±1.5
|
0.20±0.03
|
40±5
|
15±5
|
|
YPET0635
|
63.5
|
106.0±1.5
|
0.20±0.03
|
40±5
|
15±5
|
|
YPET0700
|
70
|
114.0±1.5
|
0.20±0.03
|
40±5
|
15±5
|
|
YPET0760
|
76
|
125.0±1.5
|
0.20±0.03
|
40±5
|
15±5
|
|
YPET0890
|
89
|
145.0±1.5
|
0.20±0.03
|
40±5
|
15±5
|
|
YPET1000
|
100
|
156.0±1.5
|
0.20±0.03
|
40±5
|
15±5
|
Manufacturer Part Number: YLPET
Manufacturer: Electronic Components
