Description

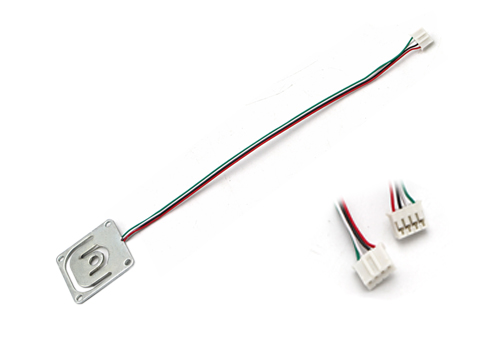

GML670-10KG Gavin / Galoce Sensor 10kg Micro Load Cell.
GML670 10KG Gavin / Galoce Load Sensor 10kg Half bridge Flat thin micro load cell, 3 Wires, center through hole RoHS
This load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales (you know, the ones you use in January for your New Year’s resolutions, and then forget about a month later). This sensor can measure up to about 110 pounds. Check the video below for a simple explanation on how these work and how to use them. Suitable for body scales,kitchen scales, postal scales, and other micro electronic weighing systems
Quick Details
Model Number:GML670
Place of Origin:Shaanxi, China
Brand Name:Galoce
Usage:PRESSURE SENSOR
Theory:Resistance Sensor
Output:Analog sensor
Description:GML670 10kg flat thin load cell
Rated capacity:5,10,30,50,75kg
Rated output- FULL BRIDGE:1.6 +- 0.2mV/V (50kg) 1.6 +- 0.2mV/V (30kg) 1.0 +- 0.2mV/V (10kg)
Rated output-HALF BRIDGE:0.8 +- 0.15mV/V
Excitation voltage:3-10VDC
Temp. effect on span:0.1%F.S/10C
Repeatability:0.05%F.S
Application:hand scale, kitchen scale, micro force test
Material:alloy steel
Manufacturer:Electronic Components
Datasheet:GML670eng.pdf
