Description

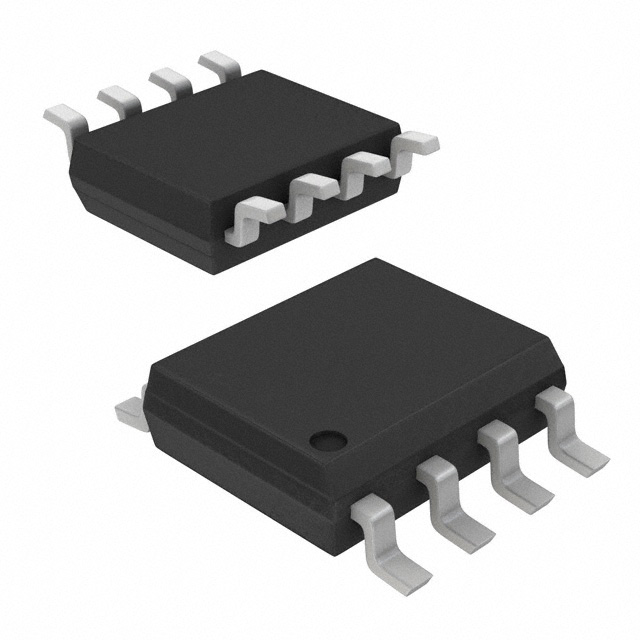

GO 10-SME LEM Bidirectional Hall Effect Current Sensor 4.5V ~ 5.5V 26mA 80mV/A Ratiometric, Voltage 8-SOIC (0.154″, 3.90mm Width) Surface Mount
Sensor Type: Hall Effect
For Measuring: AC/DC
Current – Sensing: 10A
Accuracy: ±1.3%
Sensitivity:Ratiometric, Voltage
Supply Current (Max): 26mA
Supply Voltage: 4.5V ~ 5.5V
Response Time: 2µs
Polarization: Bidirectional
Number of Channels: 1
Frequency: DC ~ 300kHz
Linearity: ±0.3%
Package / Case: 8-SOIC (0.154″, 3.90mm Width)
Mounting Type: Surface Mount
Manufacturer Part Number: GO 10-SME
Manufacturer: LEM USA Inc.
Datasheet: go_10-20-sme_series.pdf
