Description

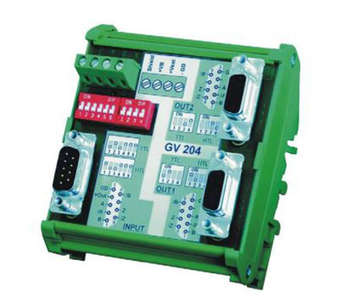

The GV204 is an Incremental Encoder Splitter (input: A,/A, B,/B, Z,/Z) for use with RS422 or TTL differential signals or with HTL signals (differential or single ended) with 2 encoder individually programmable output levels (TTL 5V or HTL 10-30V). The splitter is a level converter between TTL/RS422 levels and HTL (10-30V) levels. Also, there is an auxiliary +5V output voltage for encoder supply (with 10-30Vdc power supply). For the 5-30Vdc power supply use the GDA18-24A 24Vdc/750mA or GDA18-12A 12Vdc/1.5A.
Features
Selectable encoder input A, /A, B, /B, Z, /Z, for use with RS422 or
TTL differential signals or with HTL signals (differential or single-ended)
Two encoder outputs (A, /A, B, /B, Z, /Z each), with individually selectable
output levels (TTL 5 V or HTL 10 – 30 V)
Max. frequency 750 kHz (TTL) or 300 kHz (HTL)
Power supply either 5 V DC or 10 – 30 V DC
Aux. voltage output +5 V for encoder supply (with 10 -3 0V power supply)
Replaces GV202 & GV203
Manufacturer: Electronic Components
MFG Part #: GV204
