Description

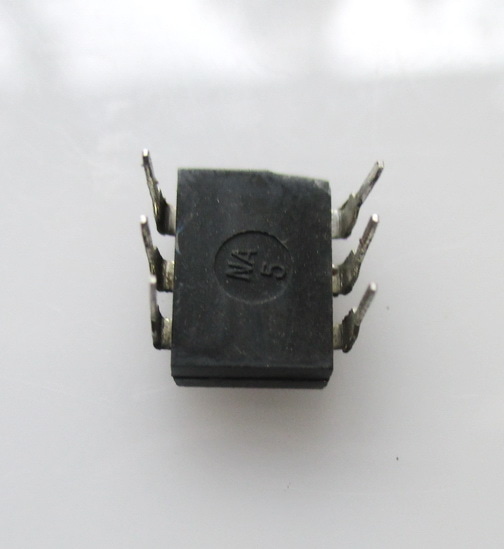

H11D2 Isocom Components Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP RoHS
Features
2500V Isolation
High Voltage 300V
UL Approval E250824
Absolute Maximum Ratings (Ta=25C)
Storage Temperature: -55C to +150C
Operating Temperature: -55C to +100C
Lead Soldering Temperature: 260C 1.6mm from case for 10S
Input-to-Output Isolation Voltage: ^2500V
Input Diode
Forward DC Current: 60mA
Reverse DC Voltage: 6V
Peak forward Current: 3.0A
1S p.w. 300pps: Power Dissipation
100mW: Derate linearly above 25C at 1.33mW/C.
Output Transistor
Collector-Emitter Voltage: 300V BVCER
Emitter-collector voltage: 7V BVECO
Collector-base voltage: 300V BVCBO
Power Dissipation: 300mW
Derate linearly above 25C at 4.0mW/C
Manufacturer:Isocom
Datasheet:h11d1.pdf
