Description

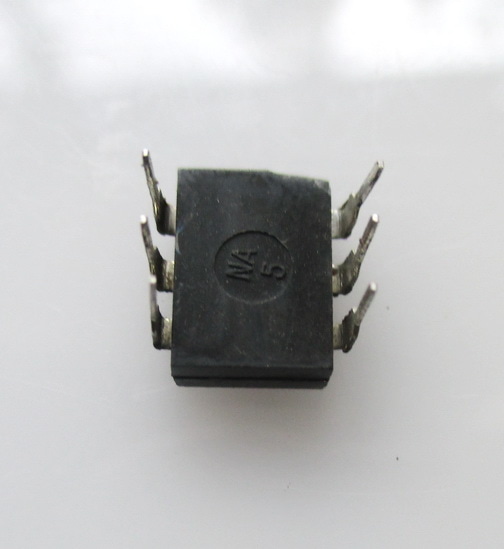

H11D3 Isocom ComponentsSpecifications
EU RoHS Compliant
Output Type DC
Input Type DC
Output DeviceTransistor With Base
Number of Channels per Chip 1
Minimum Isolation Voltage (Vrms)5300
Minimum Operating Temperature (C)-55
Maximum Operating Temperature (C)100
Maximum Forward Voltage (V)1.5
Maximum Collector-Emitter Voltage (V)200
Maximum Collector-Emitter Saturation Voltage (mV)400
Maximum Power Dissipation (mW)250
Maximum Reverse Voltage (V)6
Typical Forward Voltage (V)1.2
Maximum Forward Current (mA)60
Minimum Current Transfer Ratio (%)20
Current Transfer Ratio Test Current (mA)10
MountingThrough Hole
Package Height (mm)4(Max)
Package Length (mm)7.62(Max)
Package Width (mm)7(Max)
PCB changed 6
Standard Package Name DIP
Supplier Package PDIP
Pin Count 6
Lead Shape Through Hole
Manufacturer:Isocom
Datasheet:h11d1.pdf
