Description
H4116 DIN RAIL MOUNTING, 24 V DC, SWITCHING VOLTAGE 250 VAC / 127 VDC RoHS
A DIN rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks
Manufacturer Part Number: H4116
Manufacturer : HIMA
Part Number : H4116

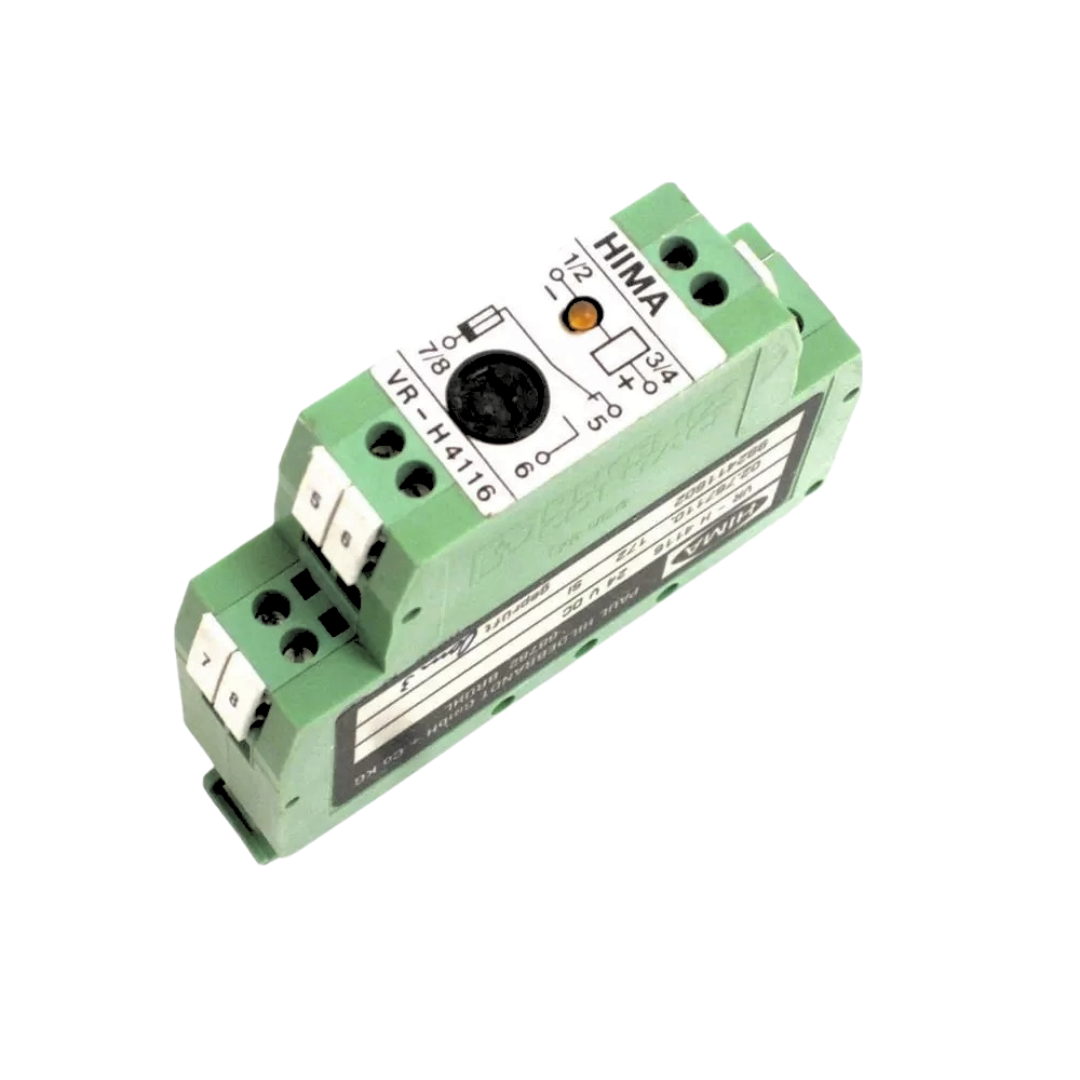

Safety Relay in Terminal Housing
Input Voltage : 24 VDC (-15% to +20%)
Current Consumption : 20 mA
Output : 1 potential-free change-over contact, sealed
Switching Voltage : 1 mV to 250 VAC/VDC
Switching Current : 1 mA to 4 A
Switching Capacity : AC: ≤ 1000 VA (cos φ > 0.5) | DC: Up to 30 V (≤ 120 W), Up to 250 V (≤ 40 W)
Switching Time : Approx. 7 ms
Reset Time : Approx. 5 ms
Bounce Time : Approx. 1 ms
Lifetime : Mechanical: ≥ 107 switching operations | Electrical: ≥ 2.5 × 105 switching operations (at full load)
Ambient Temperature : -25°C to 50°C
Degree of Protection : IP20 (IEC/EN 60529)
Power Dissipation : 1–2 W
Mounting : 35 mm DIN rail or C rail
Shipping Weight : 2 Kg
