Description

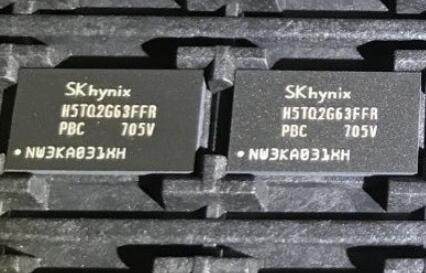

H5TQ2G63GFR-RDC SK Hynix DRAM Chip DDR3 SDRAM 2G-Bit 128Mx16 1.5V 96-Pin F-BGA
Synchronous DRAM, SDRAM, DDR3, 2GB (X16), 96FBGA
The H5TQ2G83GFR-xxC, H5TQ2G63GFR-xxC,H5TQ2G83GFR-xxI, H5TQ2G63GFR-xxI, H5TQ2G83GFRxxL, H5TQ2G63GFR-xxL,H5TQ2G83GFR-xxJ,H5TQ2G63GFR-xxJ are a 2,147,483,648-bit CMOS Double Data Rate III (DDR3) Synchronous DRAM, ideally suited for the main memory applications which requires large memory density and high bandwidth. SK Hynix 2Gb DDR3 SDRAMs offer fully synchronous operations referenced to both rising and falling edges of the clock. While all addresses and control inputs are latched on the rising edges of the CK (falling edges of the CK), Data, Data strobes and Write data masks inputs are sampled on both rising and falling edges of it. The data paths are internally pipelined and 8-bit prefetched to achieve very high bandwidth.
Features
VDD=VDDQ=1.5V +/- 0.075V
Fully differential clock inputs (CK, CK) operation
Differential Data Strobe (DQS, DQS)
On chip DLL align DQ, DQS and DQS transition with CK transition
DM masks write data-in at the both rising and falling edges of the data strobe
All addresses and control inputs except data, data strobes and data masks latched on the rising edges of the clock
Programmable CAS latency 5, 6, 7, 8, 9, 10, 11, 12, 13 and 14 supported
Programmable additive latency 0, CL-1, and CL-2 supported
Programmable CAS Write latency (CWL) = 5, 6, 7, 8, 9 and 10
Programmable burst length 4/8 with both nibble sequential and interleave mode
BL switch on the fly
8banks
Average Refresh Cycle (Tcase 0 oC~ 95 oC)
– 7.8 s at 0oC ~ 85 oC
– 3.9 s at 85oC ~ 95 oC
Commercial Temperature( 0oC ~ 95 oC)
Industrial Temperature( -40oC ~ 95 oC)
JEDEC standard 78ball FBGA(x8), 96ball FBGA(x16)
Driver strength selected by EMRS
Dynamic On Die Termination supported
Asynchronous RESET pin supported
ZQ calibration supported
TDQS (Termination Data Strobe) supported (x8 only)
Write Levelization supported
8 bit pre-fetch
