Description

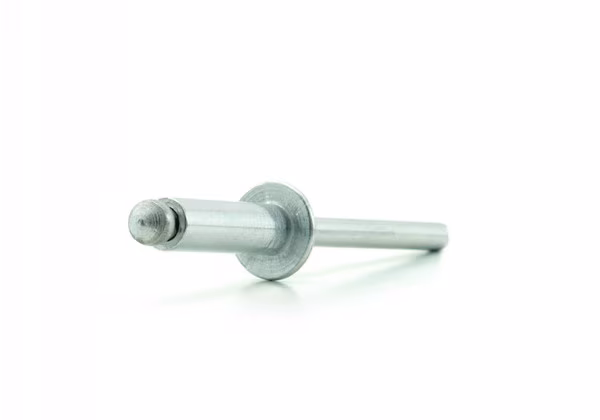

AK42BS 5056 Aluminum countersunk rivet body with coated carbon steel mandrel RoHS
Great for blind applications!
- A Pop Rivet joins the material by pulling the mandrel head into the rivet body and expanding it on the back side.
- As a low cost, tamperproof, and uniformly set fastener, a blind rivet won’t torque-out like a threaded fastener.
Product Parameters:
| Alloy / Material | aluminum/steel |
| Diameter of Body | 1/8″ |
| Grip Range: Total thickness to be Fastened | .063-.125 |
| Head Diameter | H = .207-.233 |
| Head Style | countersunk head |
| Hole Size | .129-.133 #30 |
| Length of Body | L (max) = .275 |
| Shear | 170 |
| Tensile | 220 |
