Description

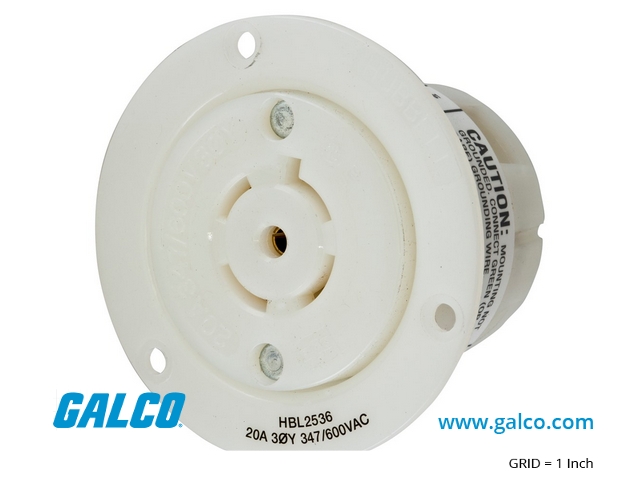

HBL2536 Hubbell Locking Devices, Twist-Lock, Industrial, Insulgrip Flanged Receptacle, 20A 3-Phase Wye 20A 347/600V AC, 4-Pole 5-Wire Grounding, NEMA L23-20R, Screw Terminal, Nylon casing, Back wired, White.
Backwired terminations for ease of installation
#10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
Mounting screws included
Specifications
Item Number: HBL2536
UPC: 783585038704
Brand: Hubbell
Item Category:Plugs and Receptacles
Subcategory: Twist Lock
NEMA Configuration:
L23-20R
Current Rating: 20 Amps
No. of Poles: 4
No. of Wires: 5
Color: White
Phase: 3
Body Type: Straight
Connection Type: Flanged Outlet
Watertight: No
Corrosion Resistant: No
Isolated Ground: No
Approvals: UL;CSA
H x W x D: 3.06 in x 3.06 in x 2.27 in
Net Weight: 5.6 oz
Gross Weight: 5.6 oz
Manufacturer:Electronic Components
Datasheet:Others/HBL2536.pdf
