Description
Hubbell HBL2811 Locking Devices, Twist-Lock, Industrial, Male Plug, 30A 3-Phase 120/208V AC, 4-Pole 5-Wire Grounding, L21-30P, Screw Terminal, Black and White Lead free / RoHS: Compliant
Hubbell Incorporated was founded by Harvey Hubbell as a proprietorship in 1888, and was incorporated in Connecticut in 1905. Hubbell design, manufacture and sell electrical and electronic products for non-residential and residential construction, industrial and utility applications. The Companys reporting segments consist of the Electrical segment (comprising electrical systems products and lighting products) and the Power segment. Hubbells manufacturing facilities are located in the United States, Canada, Switzerland, Puerto Rico, Mexico, the People’s Republic of China (“China”), Italy, the United Kingdom, Brazil and Australia.
General
Application Extra Heavy Duty Industrial
Color Black, White
Cord Range 0.350″-1.150″ (9-29)
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Item Type 30A Grounding Insulgrip® Plug
Material Nylon
Material – Mounting Hardware Cord Mounted
Number Of Poles 4-Pole
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical – Current Interrupting – Certified for current interrupting at full rated current
Electrical – Dielectric Voltage – 2,000V minimum
Environmental – Flammability – HB or better per UL94/CSA 22.2 No.0.17
Environmental – Moisture Resistance – IP20 Suitability
Environmental – Operating Temperatures – Maximum Continuous 75°C Minimum -40°C (w/o impact)
Mechanical – Terminal Accommodation – #16 AWG – #8 AWG stranded copper wire only.
Mechanical – Terminal Identification – Terminals identified in accordance with UL 498
Type Plugs
UPC 783585039633
Dimensions
Dimensions 2.33 in x 2.33 in x 2.75 in
Display Size Standard Sized
Height 2.75 in
Length 2.33 in
Weight 0.35 lb
Width 2.33 in
Electrical Ratings
Amperage Rating 30 A
Connectivity Pressure Terminal Screws
Current / Amperage Rating 30 A
Current Rating 30 A
Dielectric Strength Withstands 2,000V minimum
Phase Three Phase
Voltage Rating 3 Phase WYE 120/208 VAC
Voltage Rating Description 3 Phase WYE 120/208 VAC
Wattage 6240 W
Conductor Related
Cable Range 0.350 – 1.150 in
Cord Type All Listed Portables
Number Of Wires 5-Wire
Wire Size #16 AWG to #8 AWG
Certifications and Compliance
Industry Standard(s)
Certified to CSA C22.2 No.42
Fed.Spec. W-C-596
Listed to UL 498
Nema Rating L21-30P
Logistics
Carton Quantity 30

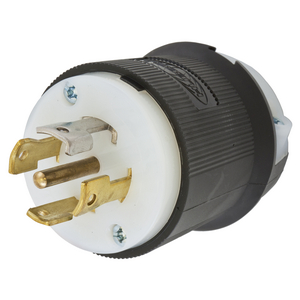

The HBL2811 is a 4-pole 5-wire 3-phase 30A 120/208VAC Y-type Twist-Lock® NEMA L21-30R watertight Safety-Shroud® Grounding Plug, made of black and white nylon body, brass blades, #10-32 brass Phillips/slotted/Robertson screw terminals and 9 to 29mm cord diameter.
Locking Devices, Twist-Lock®, Industrial, Male Plug, 30A 3-Phase 120/208V AC, 4-Pole 5-Wire Grounding, L21-30P, Screw Terminal, Black and White.
Ribbed nylon housing provides a secure grip and impact and chemical resistance.
Superior cord grip design protects terminations from excess strain.
Clear, funnel shaped wire entry for ease of termination.
Integral dust shield protects wiring chamber from dust or contaminants.
Manufacturer Part Number: HBL2811
