Description

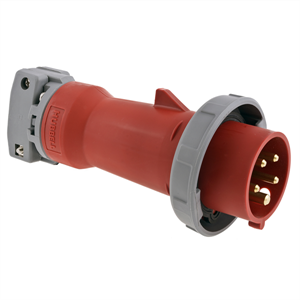

^^Wiring Device-Kellems HBL5100P7W 3-Phase Grounding Male Non-NEMA Standard Watertight Pin and Sleeve Plug, 277/480Y VAC, 100 A, 4 Poles, 5 Wires, Red RoHS
Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.
Hubbell HBL5100P7W wiring device kellems heavy duty products iec pin and sleevedevices industrial grade male plug 100a 3-phase wye 277/480v ac 4-pole 5-wire grounding terminal screws red watertight
Specifications
Amperage: 100
Amperage Rating: 100
Application: High Ampacity Connections
Approximate Weight: 4.15
Brand: WIRING DEVICE-KELLEMS
Catalog Number: HBL5100P7W
Color: Red
Connection: Pressure Terminal Screws
Cord Type: All Portable
Country of Origin: USA
Current Rating: 100
Environmental Conditions: Watertight
Manufacturer: Hubbell Wiring
Material: Composite
Mounting: Cord Mounted
NEMA Configuration: Non-NEMA
NEMA Rating: Non-NEMA
Number Of Poles: 4-Pole
Number Of Wires: 5-Wire
Phase: Three Phase
Series: HBL Heavy Duty
Size: Standard Sized Product
Special Features: Watertight
Standard: CSA Certified File LR280C;UL Classified to IEC Standards 60309-1;UL Listed, File E146033
Stock Status: NONSTOCK
Trade Size: Standard Sized Product
Type: Watertight Plug
Voltage: 3 Phase Y 277/480
Wire Size: #3 AWG to #1/0 AWG
Wire Size / Gauge: #3 AWG to #1/0 AWG
Manufacturer: Electronic Components
MFG Part #: HBL5100P7W
