Description

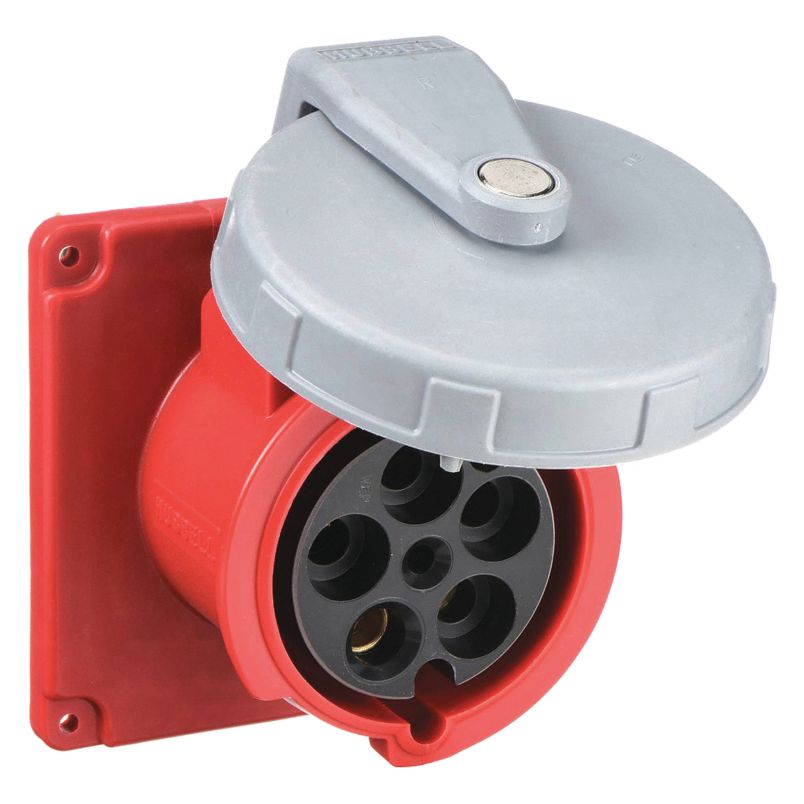

HBL5100R7W Hubbell Kellems Power Entry Connector, 3 Phase, 100A 480V, Outlet, 4P+E / 4P5W, Panel Mount, Red RoHS
Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating. Heavy Duty Products, IEC Pin And Sleeve Receptacle, Industrial Grade, Female, 100 Amps, 3-phase Wye 277/480v Ac, 4-pole 5-wire Grounding, Terminal Screws, red, Watertight
By Hubbell Wiring Device-Kellems
Catalog ID: HBL5100R7W
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Red, Watertight
Self-closing gasketed cover
Color coded housings for easy identification
Super tough insulated non-metallic housing
Watertight
Current Rating: 100A
Voltage Rating VAC: 480V
Connector Mounting: Panel Mount
Electrical Connector Gender: Outlet
Pin Configuration: 4P+E / 4P5W
Connector Colour: Red
IP Rating: IP67
Product Range: Watertight
Manufacturer: Electronic Components
MFG Part #: HBL5100R7W
