Description

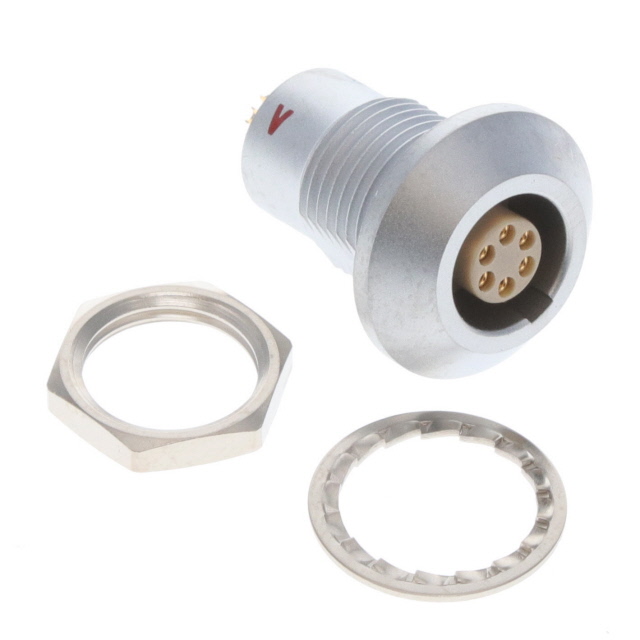

HGG.1B.306.CLLPV Lemo Push-Pull Metal Connector Receptacle, Female Sockets 6 Position 7A IP68 – Dust Tight, Waterproof Panel Mount Shielded Bulkhead Rear Side Nut UL94 V-0 Potted, Vacuumtight Solder Cup
Color: Silver
Shielding: Shielded
Type: Circular Connector Assemblies
Primary Material: Metal
Shell Material: Metal
Shell Finish Material: Brass
Mating Contact Finish: Gold
Ingress Protection:IP68 – Dust Tight, Waterproof
Connector Type: Receptacle, Female Sockets
Number of Positions: 6
Shell Size – Insert: 6
Orientation: G
Current Rating: 7A (Amps)
Termination: Solder Cup
Mounting Feature: Bulkhead Rear Side Nut
Mounting Type: Panel Mount
Fastening Type: Push-Pull
Manufacturer Part Number: HGG.1B.306.CLLPV
Manufacturer: Lemo
Datasheet: Datasheet
