Description

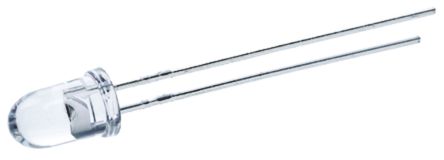

HLMP-EG15-QT000 Broadcom / Avago LED Uni-Color Red 635nm 2-Pin T-1 3/4 Bulk
Specifications
Manufacturer: Broadcom Limited
Product Category: Standard LEDs – Through Hole
RoHS
Product: Red LEDs
Package / Case: T-1 3/4 (5 mm)
Illumination Color: Red
Wavelength/Color Temperature: 626 nm
Luminous Intensity: 3200 mcd
Viewing Angle: 15 deg
Lens Transparency: Water Clear
If – Forward Current: 20 mA
Vf – Forward Voltage: 1.9 V
LED Size: T-1 3/4 (5 mm)
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 100 C
Series: HLMP-EG
Packaging: Bulk
Number of LEDs: 1
Brand: Broadcom / Avago
Lens Shape: Dome
Mounting Style: Through Hole
Lens Dimensions: 5 mm
Product Type: LED – Standard
Factory Pack Quantity: 2000
Subcategory: LEDs
Vr – Reverse Voltage: 5 V
These Precision Optical Performance AlInGaP LEDs provide superior light output for excellent readability in sunlight and are extremely reliable. AlInGaP LED technology provides extremely stable light output over long periods of time. Precision Optical Performance lamps utilize the aluminum indium gallium phosphide (AlInGaP) technology. These LED lamps are untinted, nondiffused, T-1 3/4 packages incorporating second generation optics producing well defined spatial radiation patterns at specific viewing cone angles. These lamps are made with an advanced optical grade epoxy, offering superior high temperature and high moisture resistance performance in outdoor signal and sign applications. The high maximum LED junction temperature limit of +130C enables high temperature operation in bright sunlight conditions. The package epoxy contains both uv-a and uv-b inhibitors to reduce the effects of long term exposure to direct sunlight.
Manufacturer Part Number: HLMP-EG15-QT000
