Description

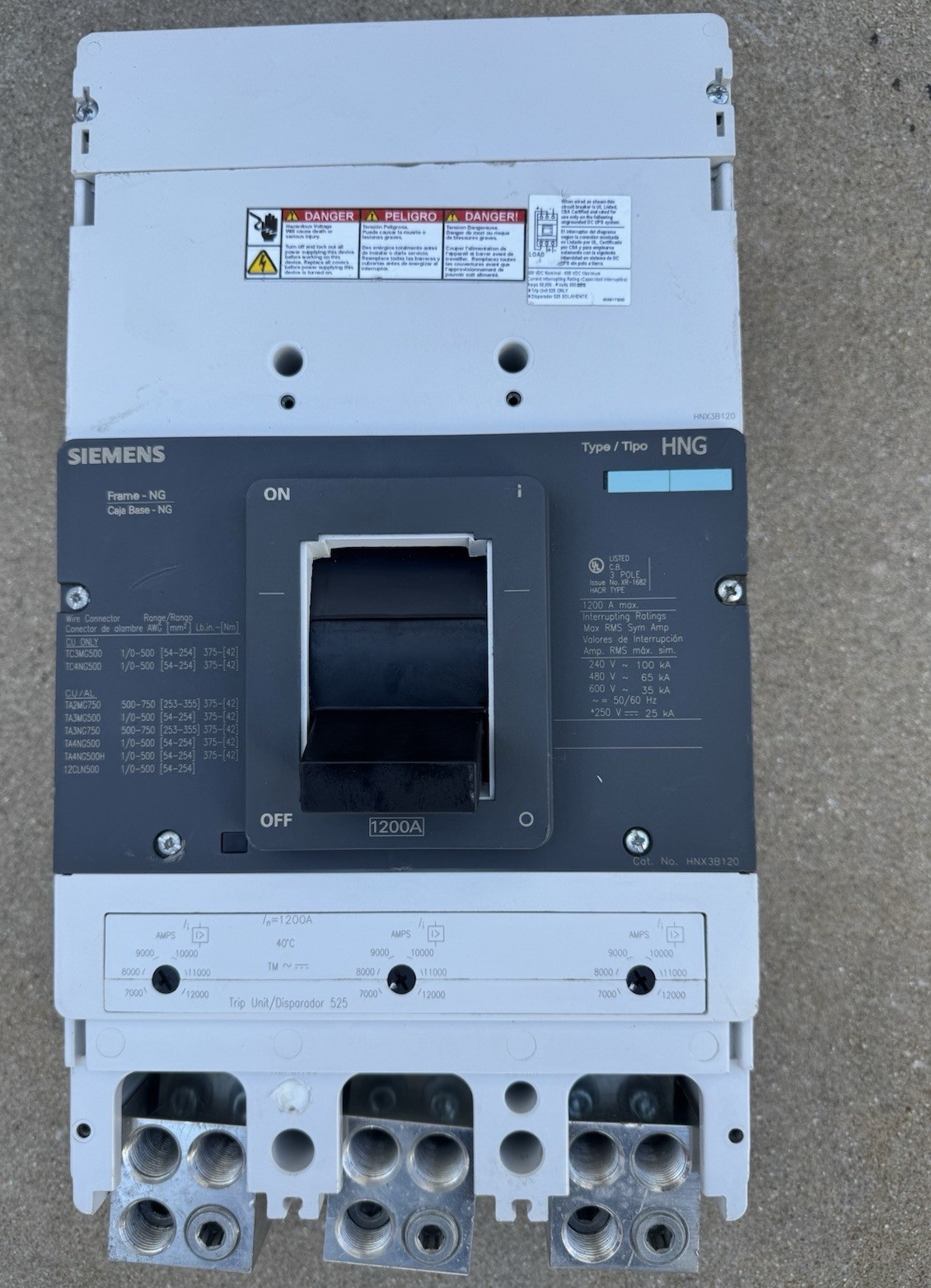

HNX3B120 Siemens Speedfax VL Series Low Voltage Molded Case Circuit Breaker, 480 VAC, 1200 A, 65 kA Interrupt, 3 Poles, Bolt-On
The HNX3B120 is a high-capacity molded case circuit breaker designed for demanding industrial power distribution. Operating at 1200A, it provides robust overcurrent protection. This unit mount breaker fits into Siemens P4 and P5 panelboards and switchboards. It features an NG frame footprint and serves as a reliable component for facility upgrades. Rated 65 kAIC at 480VAC, the device utilizes a thermal-magnetic trip unit with fixed thermal and adjustable magnetic settings (LI functions).
Specs
Alternate Catalog Number US2:HNX3B120
ARRA Compliant C
Buy American Compliant C
Catalog Number HNX3B120
Connection Type Bolt-On
Country of Origin MX
Currency USD
Dimensions 19.1 in L x 11.8 in W x 9.9 in H
EU RoHS Indicator C
Frame NG
Frequency Rating 50/60 Hz
Gross Volume Per Pack 2400.01
Gross Volume UOM in
Gross Weight Per Pack 54.4500 lb
Gross Weight per Pack Metric 24.70
Gross Weight UOM Metric kg
Harmonization Tariff Schedule Code 8536200020
Height 9.9000 in
Height [Metric] 25.1460 cm
Length 19.1000 in
Length [Metric] 48.5140 cm
Material MOLDED CASE CIRCUIT BREAKER
Number Of Poles 3
Operating Temperature 40 °C
Phase 3 pH
Returnable N
Series VL Series
Standard UL
Sub Brand VL
Temperature Rating 40 °C
Type Low Voltage
UNSPSC 39121601
UPC 11 78364349830
UPC 12 783643498303
Width 11.8000 in
Width [Metric] 29.9720 cm
Stock Status NONSTOCK
Brand Siemens
Manufacturer Siemens
Amperage Rating 1200 A
Interrupt Rating 65 kA
Trip Type Thermal Magnetic
Voltage Rating 480 VAC
