Description

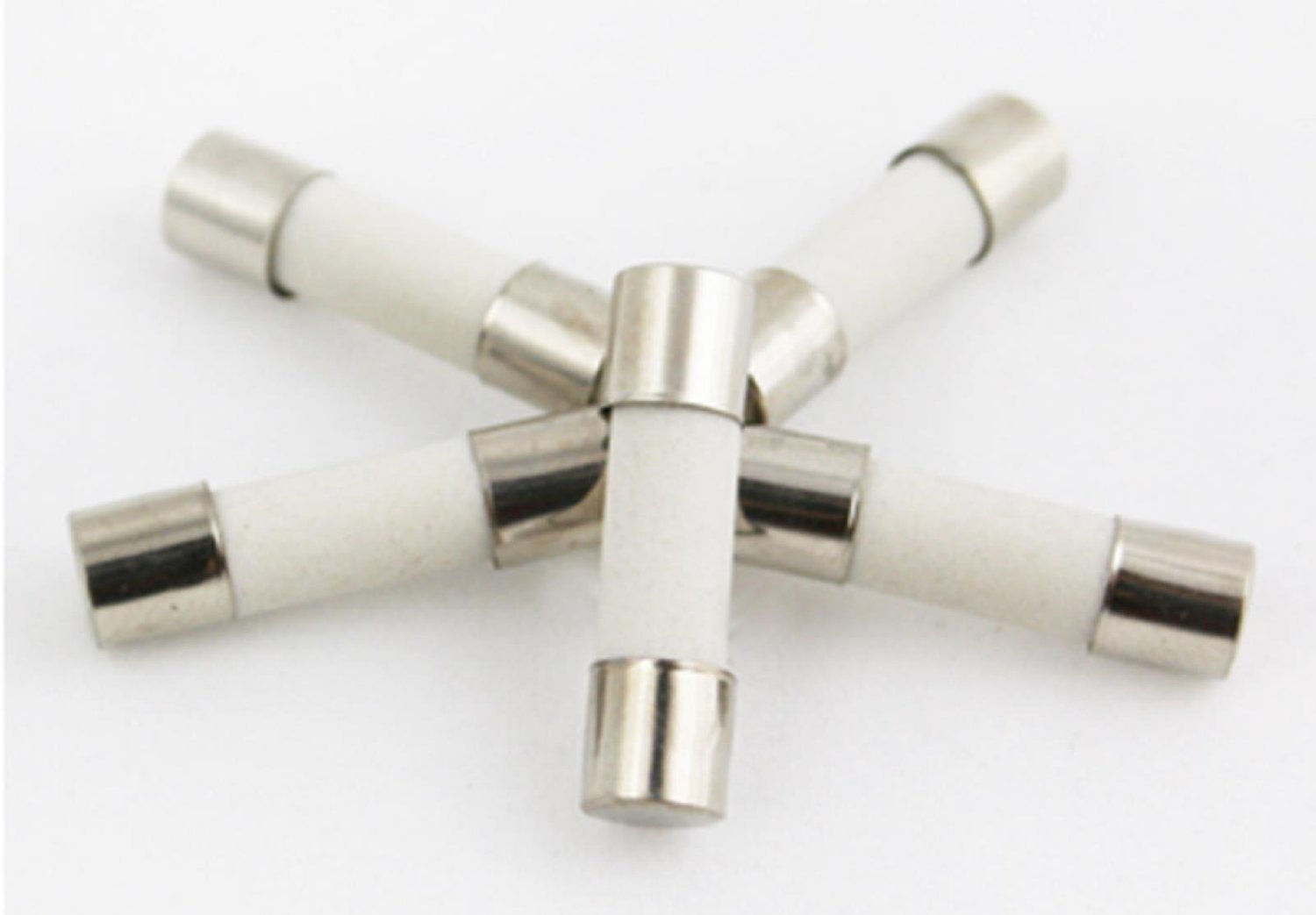

50CF HOLLYLAND Fast Acting Ceramic Tube Fuse RoHS
Test Specification
|
Rated current
|
2.1
|
2.75 In
|
400 In
|
1000 In
|
||
|
Minimum
|
Minimum
|
Minimum
|
Minimum
|
Minimum
|
Minimum
|
|
|
50mA to 4A
|
30min
|
10ms
|
2s
|
3ms
|
300ms
|
20ms
|
|
Above 4A to 6.3A
|
30min
|
10ms
|
2s
|
3ms
|
300ms
|
20ms
|
|
About 6.3A to 10A
|
30min
|
40ms
|
20s
|
10ms
|
1s
|
30ms
|
- UL File No.E236987
51CF 1A-10A (Recognized) - VDE File No.
51CF 1A-10A - PSE File No. JET5518-31003-2002
50CF 1A-15A
Interrupting Rating
|
50CF Cat. No
|
Ampere
|
Max. Voltage
drop/mV |
|
001 H/L 01.25 H/L 01.6 H/L 002 H/L 02.5 H/L 03.15 H/L 004 H/L 005 H/L 06.3 H/L 008 H/L 010 H/L
|
1A 1.25A 1.6A 2A 2.5A 3.15A 4A 5A 6.3A 8A 10A
|
1000 800 600 500 400 350 300 250 200 200 200
|
50CF Series
Dimensions (DxL): 5.2 x 20 mm
Current Rating: 250mA~16A
Voltage Rating: 250 Vdc
Safety Approvals: UR, cUR, VDE
HOLLYLAND COMPANY LIMITED
