Description

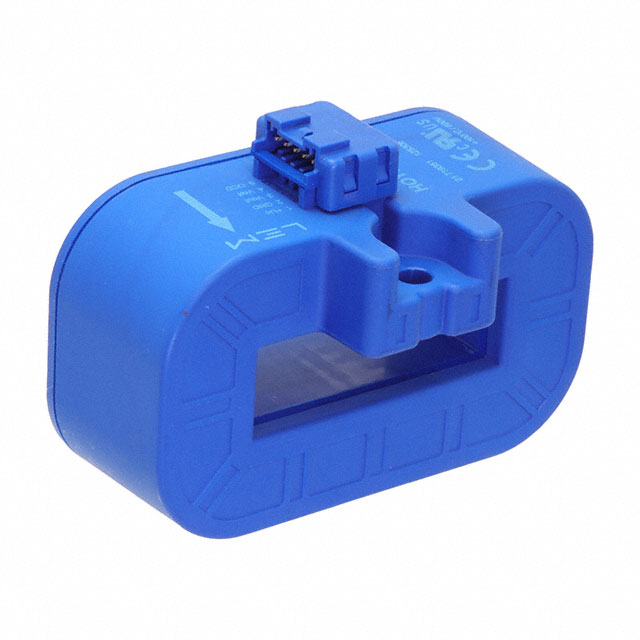

HOYL 800-S-0100 LEM Bidirectional Hall Effect, Open Loop AC/DC Current Sensor 4.5V ~ 5.5V 25mA 1mV/A ±1% 3µs Ratiometric, Voltage Module, Single Pass Through Chassis Mount
Sensor Type: Hall Effect, Open Loop
For Measuring: AC/DC
Current – Sensing: 800A
Accuracy: ±1%
Sensitivity:Ratiometric, Voltage
Supply Current (Max): 25mA
Supply Voltage: 4.5V ~ 5.5V
Response Time: 3µs
Polarization: Bidirectional
Number of Channels: 1
Frequency: DC ~ 140kHz
Linearity: ±0.5%
Package / Case: Module, Single Pass Through
Mounting Type: Chassis Mount
Manufacturer Part Number: HOYL 800-S-0100
Manufacturer: LEM USA Inc.
Datasheet: hoyl_200_800-s-0100_010f_public.pdf
