Description

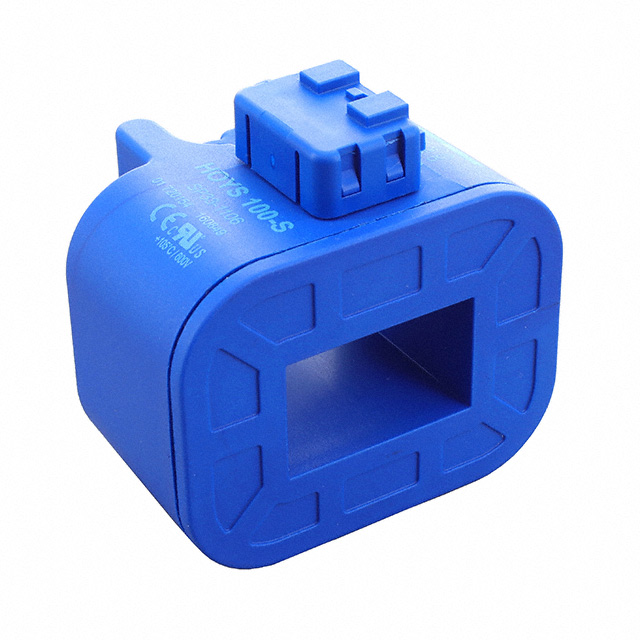

HOYS 100-S/SP33-1106 LEM Bidirectional Hall Effect, Open Loop AC/DC Current Sensor 3.14V ~ 3.46V 25mA 4.6mV/A 3µs Ratiometric, Voltage Module, Single Pass Through Chassis Mount
Sensor Type: Hall Effect, Open Loop
For Measuring: AC/DC
Current – Sensing: 100A
Accuracy:
Sensitivity:Ratiometric, Voltage
Supply Current (Max): 25mA
Supply Voltage: 3.14V ~ 3.46V
Response Time: 3µs
Polarization: Bidirectional
Number of Channels: 1
Frequency: DC ~ 180kHz
Linearity: ±0.75%
Package / Case: Module, Single Pass Through
Mounting Type: Chassis Mount
Manufacturer Part Number: HOYS 100-S/SP33-1106
Manufacturer: LEM USA Inc.
Datasheet: hoys_100_560-s_sp33_series.pdf
