Description

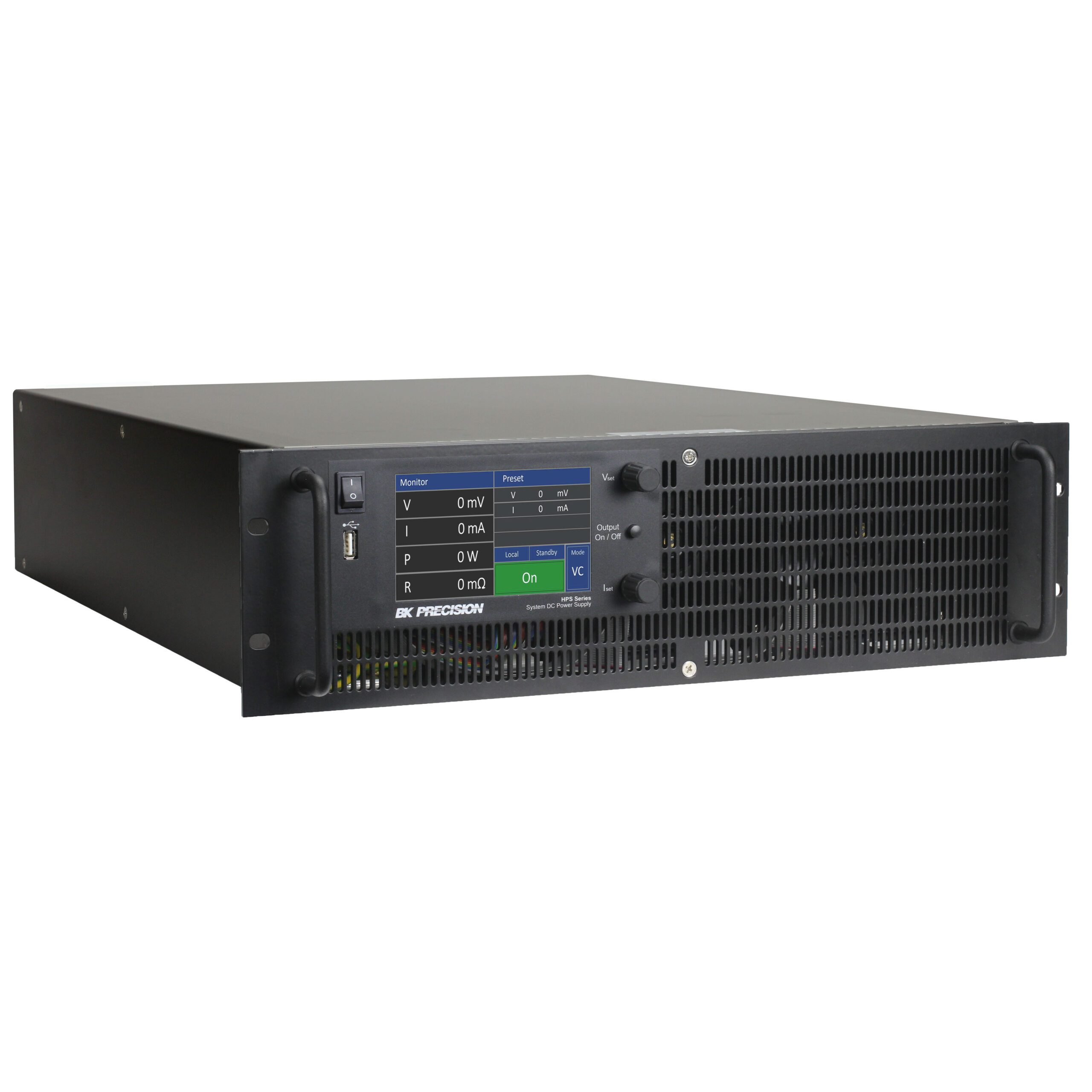

HPS20K1500-400V B&K Precision Power Supply Bench (AC to DC) 360 ~ 440VAC 20000WAnalog 0 ~ 1.5kV 0 ~ 13.4A LAN, Programmable, RS232. The BK Precision HPS20K1500-400V Single Output High-Power Programmable DC Power Supply provides 20 kW of clean output power and high efficiency in a compact 3U form factor. This power supply is equipped for ATE system applications requiring a wide output voltage and users can combine multiple units to increase the total output power to 160 kW.
The BK Precision HPS20K1500-400V Single Output High-Power Programmable DC Power Supply provides 20 kW of clean output power and high efficiency in a compact 3U form factor. This power supply is well equipped for ATE system applications requiring a wide output voltage. Multiple power supplies can be combined in parallel to increase the total output power to 160 kW. Additional power supply units are sold separately.
The 5 inch touchscreen offers intuitive control while displaying both set and measured values, including simulated internal resistance. The script function enables the power supply to output a sequence of user-defined voltage or current steps based on a set of written commands.
Additionally, built-in protection features including under voltage protection help prevent damage to the power supply and the device under test. Adjustable voltage or current slew rates and configurable output ON/OFF timer functions enhance user control. LabVIEW drivers are provided to simplify instrument control from a PC. Output voltage and current can be logged directly to a USB flash drive.
Specs
Manufacturer: B&K Precision
Product Category: Power Supplies – Bench Top
Product: Programmable DC Power Supplies
Type: High Power
Input Voltage: 187 VAC to 229 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 1.5 kV
Output Current-Channel 1: 13.4 A
Output Power: 20 kW
Display Type: TFT
Brand: B&K Precision
Height: 132.5 mm
Length: 667 mm
Maximum Operating Temperature: + 50 C
Minimum Operating Temperature: 0 C
Operating Temperature Range: 0 C to + 50 C
Product Type: Bench Top Power Supplies
Series: HPS
Subcategory: Power Supplies
Width: 482 mm
Unit Weight: 82 lbs
Number of Outputs: 1
Voltage Output: 0 ~ 1.5kV
Current Output: 0 ~ 13.4A
Size / Dimension: 24.200″ L x 19.000″ W x 5.300″ H (614.68mm x 482.60mm x 134.62mm)
Manufacturer: B&K Precision
Datasheet: HPS+Series_datasheet.pdf
