Description

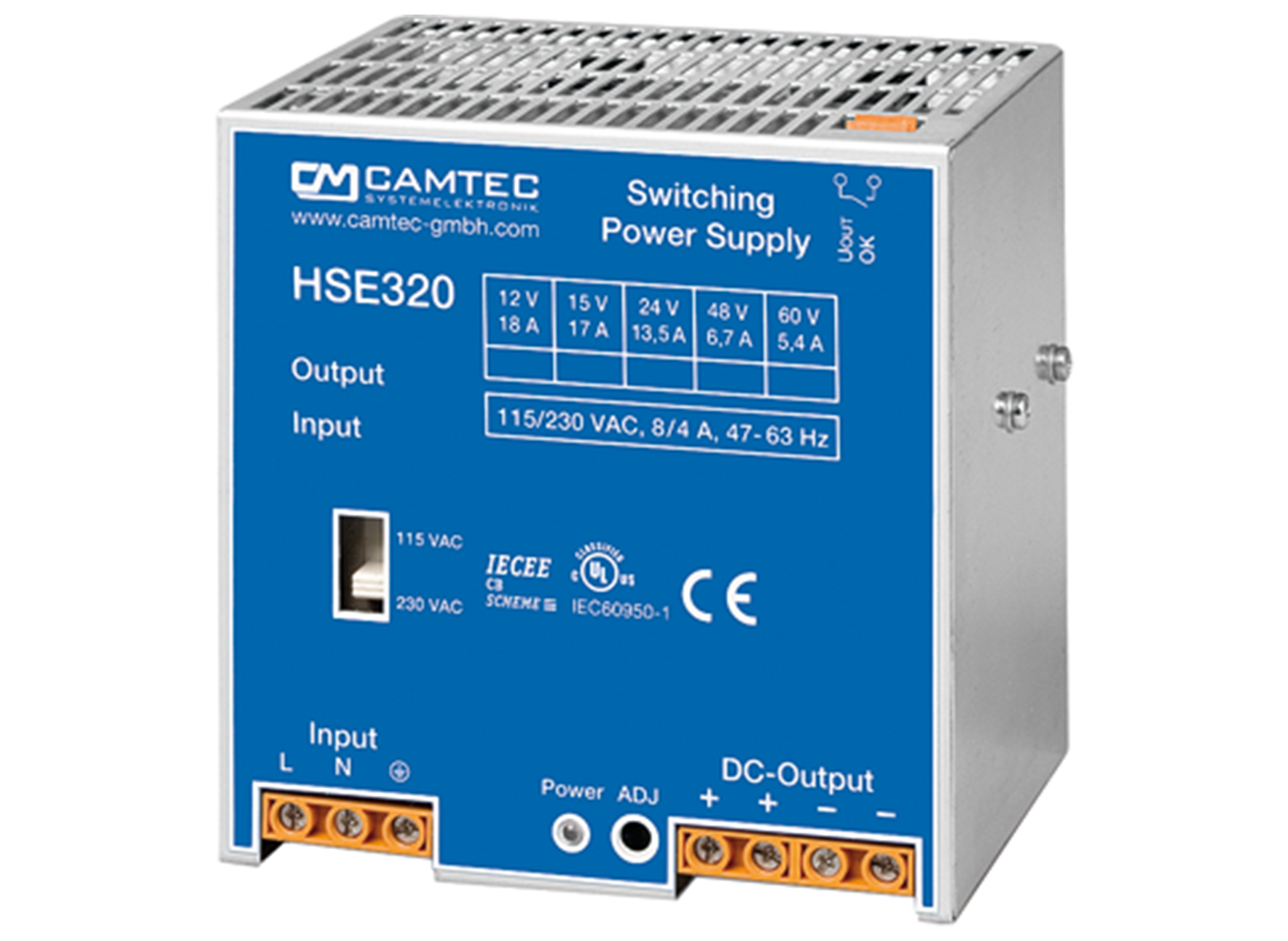

Camtec HSE03201.15TLIRC DIN Rail Power Supply 320 Watts 15 V, 320 W, 17A 20C+70C
115/230Vac Input Voltage low inrush Lead free / RoHS: Compliant
Input: 115/230 Vac, 8/4 A 47 – 63 Hz
Output: 12 V/18 A, 15 V/17 A, 24 V/13,5 A, 48 V/6,7 A, 60 V/5,4 a
Single-phase AC/DC power supply with electronic inrush current limiting, for rail mounting, low inrush, V/I characteristic; Input voltage: 100 to 120 VAC (220 to 240 VAC). Input range AC: 90 to 132 V/ 184 to 265 V. Input range DC: 250 to 375 V. Backup time (230 VAC): 40 ms. MTBF: 400000 h. Connection: 6.0 mm² screw terminals. Operating temperatures: –10 to +70 °C. Dimensions: 120 x 124 x 96 mm. Weight: 1.2 kg.
Technical attributes (type, output voltage, output current, residual ripple, efficiency): HSE03201.15TLIRC, 15 VDC, 17 A, 30 mV, 91 %
FEATURES
320 Watts Power Supply
DIN Rail 35mm. Metal housing
91% efficiency typ
-20°C…+60°C full output power
Free air convection
Continuous short circuit protected
Overload & low voltage protected
Soft start & auto-recovery
EMI/EMS EN61000-6-2.3. EN55022 class B
cUL60950 EN60950-1 EN60204-1
High reliability. Shock & vibration resistant
Active Low Inrush Current Limiter
Number of outputs:1
Length:96 mm
Height:124 mm
Power:320 W
efficiency:91 %
Output current:17 A
Width:120 mm
Input voltage AC:90-265 VAC
Output voltage DC:15 VDC
Manufacturer:Camtec
Datasheet:HSE03201_Camtec.pdf
