Description

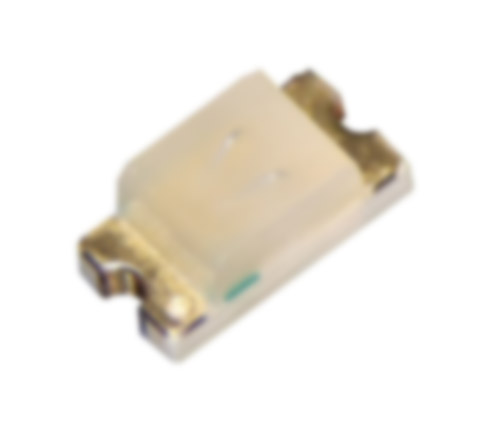

HT-150NG Harvatek LED Uni-Color Green 520nm 2-Pin Chip LED RoHS
Specifications
Type Uni-Color
Product Category Chip LED
Color Green
Number of LEDs 1
LED Material InGaN
Lens Shape Type Rectangular
Mounting Orientation Top Mount
Intensity 160mcd
Dominant Wavelength (nm) 527
Peak Wavelength (nm) 520
Viewing Angle (°) 140
Maximum Forward Current (mA) 20
Test Current (mA) 20
Maximum Forward Voltage (V) 3.9
Reverse Voltage (V) 5
Maximum Power Dissipation (mW)78
Minimum Operating Temperature (°C)-30
Maximum Operating Temperature (°C)80
Lead Standoff No
Supplier Color Green
High Power No
High Brightness No
Standard Package Name Chip LED
Pin Count 2
Supplier Package Chip LED
Mounting Surface Mount
Package Height 1.1
Package Length 3.2
Package Width 1.6
PCB changed 2
Lead Shape No LeadHarvatek Corporation was founded in 1995 and are listed on Taiwan Stock Exchange (TWSE) in 2003 under ticker number 6168.
Harvatek Technologies is a reputable supplier of LED solutions, including SMD LEDs, through-hole LEDs, display LEDs and non-visible devices. Based in Santa Clara, California, in the heart of Silicon Valley, Harvatek Technologies mission is to provide high quality LED products that enable electronic products to realize innovative designs while achieving power consumption, economic and environmental goals.
It is backed by its parent company, Harvatek Corporation, a world-class LED manufacturer based in Hsin Chu, Taiwan. Harvatek Corporation is one of the largest LED packager and LED solutions provider today.
Manufacturer:Electronic Components
Datasheet:B1911NG.pdf
