Description

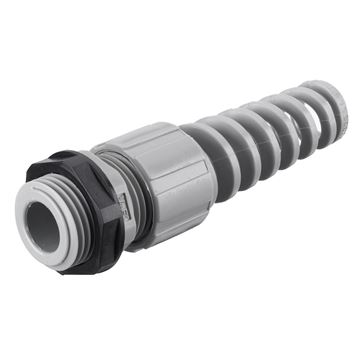

HJ1040GPK25 — Cord Connectors Hubbell Juniors are a miniature liquidtight version of the full-sized Hubbell cord connectors. They feature the same GOTCHA ring technology and neoprene bushings.
Product Specifications
| Product Type | Cord Connectors |
| Material/Style | Nylon Miniature with Spiral |
| Cord Diameter Range | .25″- .31″ (6.3-7.9) |
| Cord Connector Body Style | Straight Male |
| HUB Size | 1/2″ |
| Color |  |
| Effective Operating Temperature | -30°F to +225°F (-34°C to +107°C) |
| Recommended Knockout Hole Size | .82″-.84″ (20.9-21.3) |
| Flammability | Hubbell Juniors have a UL 94-V2 rating. |
| Dimension A | 1.00″ (25.4) Dia. |
| Dimension B | 3.72″ (94.5) Ref. |
| Dimension C | .46″ (11.7) |
| Dimension D | .45″ (11.4) Throat Dia. |
| Dimension E | .45″ (11.4) |
| Dimension F A/C | .99″ (25.1) |
| Dimension F A/F | .92″ (23.4) |
| Certifications | UL Listed, CSA Certified |
| Packaging | Bulk 25 |
| UPC Number | 78358502318 |
| Weight in LBs | 1.22 |
| Link to Drawing Library | Click here for Library |
| Link to PDF Catalog | Click here for Catalog |
Manufacturer:Electronic Components
Datasheet:HJ1040GPK25.pdf
