Description

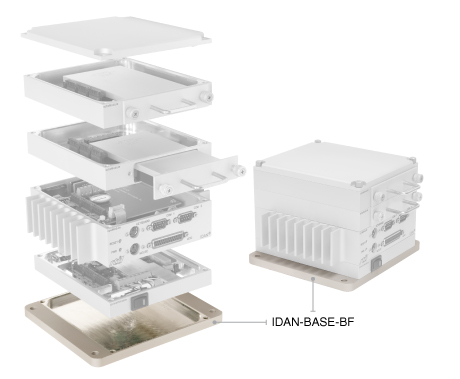

IDAN-BASE-BF RTD Embedded Technologies IDAN base plate with side-mounting flanges
Key Features
Modular rugged milled aluminum frame
Maintains the PC/104 bus self-stacking concept
Allows quick interchangeability of modules
Aluminum Alloy – 6061, Temper-T6
Finish – MIL-PRF-85285 polyurethane topcoat, per FED-STD-595, color 36495 (light gray). Panel engravings per FED-STD-595, color 37038 (black).
Additional paint options available upon request
Recommended Accessories
IDAN-BOLTS
Physical Attributes
Dimensions
Length: 5.983 inches (152 mm)
Width: 6.617 inches (168 mm)
Height: 0.385 inches (10 mm)
Height for bolt length: 6 mm (does not extend through base plate)
Weight: Approximately 0.76 lbs. (0.34 Kg)
Operating Temperature: -40 to +85C: 90% humidity non-condensing
Storage Temperature: -55 to +125C
Manufacturer: Electronic Components
MFG Part #: IDAN-BASE-BF
