Description

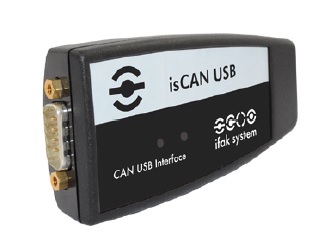

The CAN dongle isCAN USB with the universal USB interface
^grants a fast access to any CAN/CANopen based network. Mobile
^setup
^as well as monitoring are supported. Desktop PCs
^and notebook devices without installed CAN adapter can be taken
^into the field and connected with the CAN network within seconds.
^The device is bus powered, thus not depending on external power
^supplies.
^The isCAN USB interface standard type supports the CAN
^specification 2.0A (11 bit ID) and 2.0B (29 bit ID). It is connected
^with a 9 pin DSub
^connector according to the CiA specification DS102.
^LEDs indicate the actual working condition.
^The optoisolated
^interface supports a transmission speed of up to
^1 MBit/s. With the included driver DLL userspecific
^applications
^can be integrated easily. Applications developed for the
^mobile USB interface can be used with the stationary PCI board at
^once without any modifications. Optionally an OPC server software
^(isCAN Server) is available.
Manufacturer Part Number: ISCAN-USB
Manufacturer: Electronic Components
